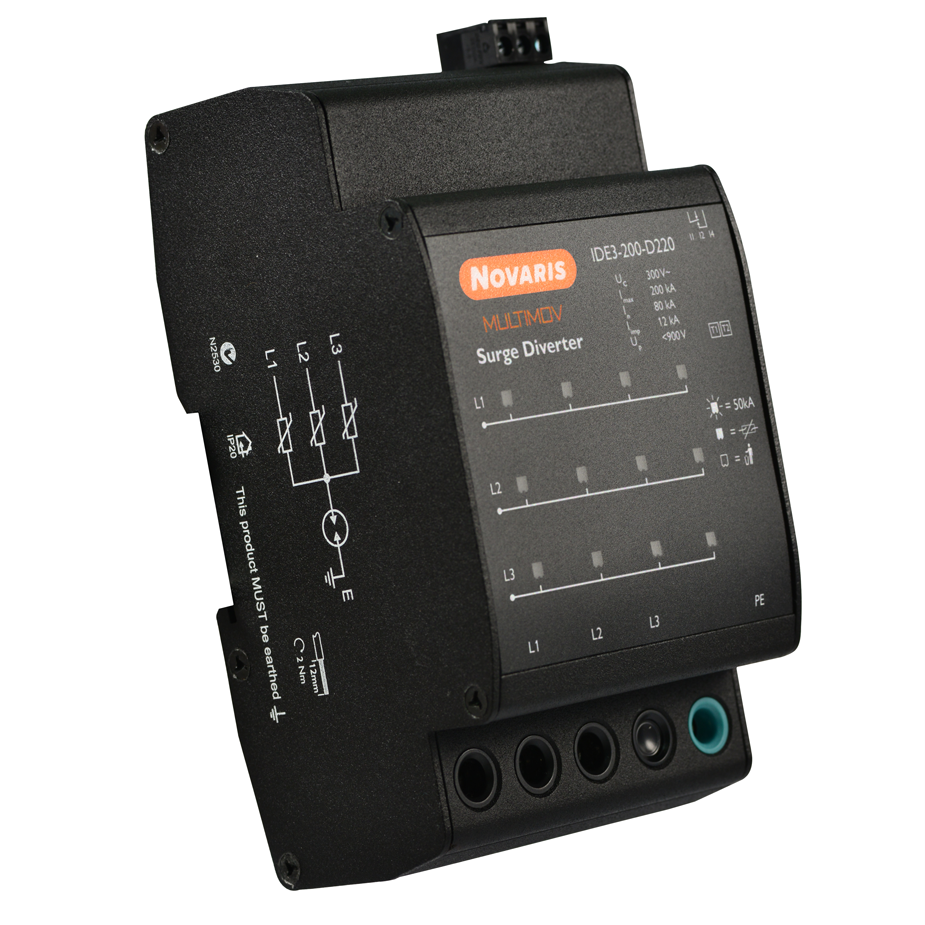

Novaris IDE3-200-D220 Surge Diverter 3 PH 200kA 220VAC Shunt Aluminium

Product Code: IDE3-200-D220

  • Handles up to 200 kA current
  • Operates across a wide temp range: -40 to 70°C
  • Fast response time of 5 ns
  • Durable aluminium construction
  • Suitable for 3-phase systems
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Nominal Discharge Current (8/20µs) - In (kA) 40
No. of Phases 3
Operational Temperature Range (°C) -40 to 70
Voltage Protection Level - Up (kV) 0.8
Response Time (ns) 5
Enclosure Material Aluminium
Backup fuse rating (A) 63
Maximum Continuous Voltage AC (V) 220
Maximum Discharge Current (8/20µs) (kA) 200
Product Type Surge Diverter
Brand NOVARIS
Connection Type Shunt
Fuse Rating 63 A
Humidity 5-95%
Material Aluminium
Operational Temperature -40 to 70 deg C
Phase 3
Rated Current 200 kA
Rated Voltage 220 VAC
Response Time 5 ns
Voltage Protection Level 0.8 kV

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
