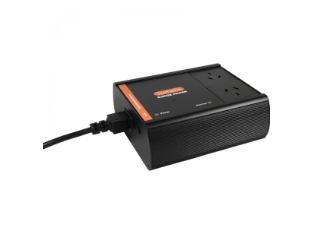

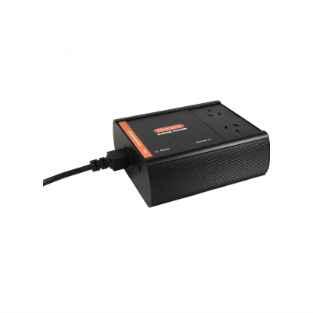

Novaris PP10A8-50 Plug-In Surge Filter 1 PH 50kA 275VAC 8 Outlet Free Standing Mount IP20

Product Code: PP10A8-50

Surge filter for 275 VAC systems
Handles up to 50 kA current
IP20 rated, free-standing design
Compact: 305x140x60 mm dimensions
Complies with IEC and AS/NZS standards

Specifications

Product Type	Plug-In Surge Filter
Brand	NOVARIS
Series	PP10
Degree of Protection	IP20
Depth	60 mm
Height	140 mm
Humidity	0-90%
Modes of Protection	L-N, L-PE, N-PE
Mounting Type	Free Standing
Number of Outlets	8
Operational Temperature	-40 to 70 deg C
Phase	1
Rated Current	50 kA
Rated Short Circuit Current	10 A
Rated Voltage	275 VAC (L-N, N-PE, L-PE)
Standards and Approvals	IEC 61643-11, AS/NZS 1768, IEEE C62.41, IEC 1000-4-5
Suitable For Use With	19 in Rack
Voltage Protection Level	<0.6 kV
Weight	1.3 kg
Width	305 mm

Documents

IPD Product Catalogue

IPD Product Catalogue V17
