Specifications

Dimensions (mm)	94W x 30H x 4D
Reference No.	308220
Weight (kg)	0.25
Class (Lightning Current Carrying Capability) (kA)	50/100
Surface Protection	Hot-dip Galvanized
Conductor Diameter (mm)	7
Lightning current load-bearing capacity (10/350µs)	100
Clamping Range Rd/Rd (mm)	7-10 / 7-10
Clamping Range Rd/Fl (mm)	7-10 /30
Clamping Range FI/Fl (mm)	30/30

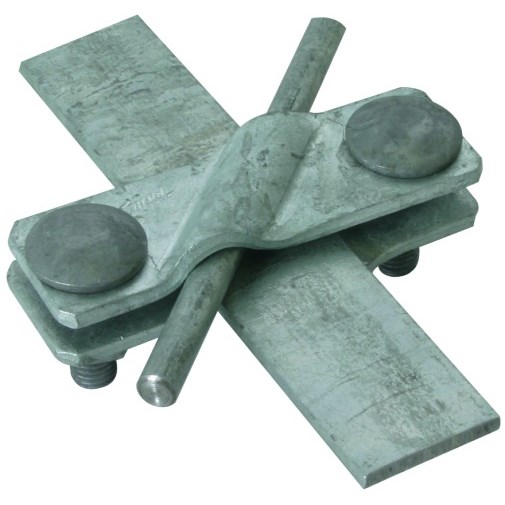

Product Type	SV Clamp
Brand	DEHN
Clamping Range	7-10 mm
Connection Type	M10 x 30 mm Screw
Connector Type	Cross Connector
Depth	4 mm
Finish	Hot Dip Galvanized
Height	30 mm
Lid Screw Type	Flat Round Screw
Lightning Current Carrying Capability	50 kA, 100 kA
Material	Steel
Rated Short Circuit Current	7.3 kA
Screw Size	M10 x 30mm
Standards and Approvals	EN 62561-1
Weight	250 g
Width	94 mm
