Specifications

Dimensions (mm)	94W x 30H x 3D
Reference No.	308239
Weight (kg)	0.197
Class (Lightning Current Carrying Capability) (kA)	100
Surface Protection	Untreated
Conductor Diameter (mm)	30
Lightning current load-bearing capacity (10/350µs)	100
Clamping Range FI/Fl (mm)	30/30

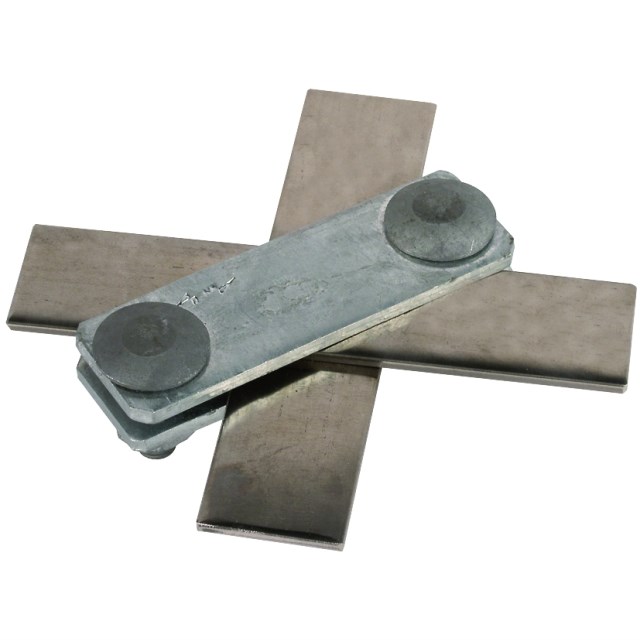

Product Type	SV Clamp With Screw and Nut
Brand	DEHN
Clamping Range	30 mm
Connection Type	M10 x 30 mm Screw
Connector Type	Cross Connector
Depth	3 mm
Finish	Untreated
Height	30 mm
Lid Screw Type	Other
Lightning Current Carrying Capability	100 kA
Material	Stainless Steel
Rated Short Circuit Current	3.9 kA
Screw Size	M10 x 30mm
Standards and Approvals	EN 62561-1
Weight	197 g
Width	94 mm
