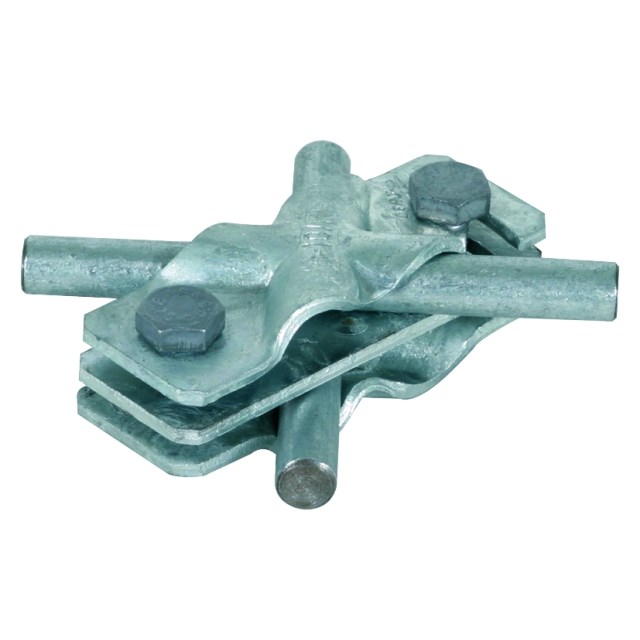

DEHN 308070 SVP Clamp 8-10mm M8 x 25mm Screw Steel

Product Code: 308070

  • M8 x 25 mm screw connection
  • Complies with EN 62561-1 standards
  • Steel construction, hot dip galvanized finish
  • Supports lightning currents of 50 kA, 100 kA
  • Clamping range of 8-10 mm
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 3W x 8H x 3D
Weight (kg) 0.197
Surface Protection Hot-dip galvanized
Conductor Diameter (mm) 8
Lightning current load-bearing capacity (10/350µs) 100/50
Clamping Range (mm) 8 - 10
Product Type SVP Clamp
Brand DEHN
Clamping Range 8-10 mm
Connection Type M8 x 25 mm Screw
Connector Type Cross connector
Depth 3 mm
Finish Hot Dip Galvanized
Height 8 mm
Lid Screw Type Hexagon screw
Lightning Current Carrying Capability 50 kA, 100 kA
Material Steel
Standards and Approvals EN 62561-1
Thread Size M8 x 25mm
Weight 197 g
Width 3 mm
