When it comes to industrial and commercial electrical systems, ensuring reliable operation and safety is paramount. The SHD200 Series Switch Disconnector is designed with these priorities in mind, providing a robust solution for your power distribution needs.

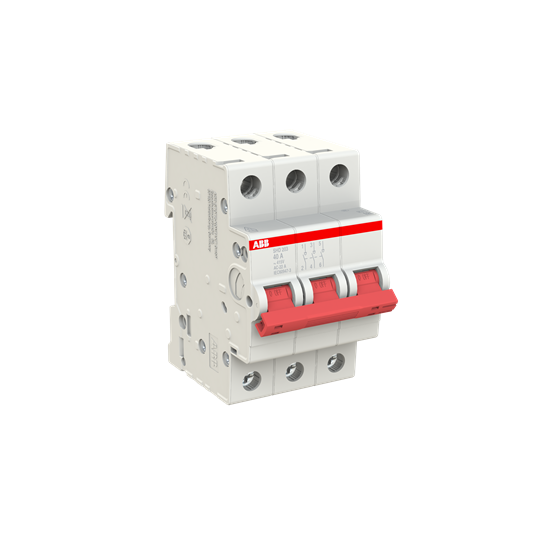

This switch disconnector is engineered for applications requiring a rated current of 40 A, making it suitable for medium-duty tasks across various sectors. Its compact dimensions—52.5 mm in width, 85 mm in height, and 69 mm in depth—allow for efficient space utilization on the DIN rail mounting system. This feature ensures seamless integration into existing panels without sacrificing performance or accessibility.
The device meets the AS/NZS 60947-3 standards and approvals, guaranteeing compliance with Australian safety regulations. It operates at a rated voltage of 400/415 VAC and supports frequencies of both 50 Hz and 60 Hz, demonstrating versatility across different electrical environments. With a rated impulse withstand voltage of 4 kV and an insulation voltage rating of up to 440 V, this switch disconnector offers robust protection against overvoltage conditions.
In terms of physical construction, the unit boasts an IP20 degree of protection. While this level does not provide full protection against dust or water ingress, it is adequate for indoor installations where such exposure is minimal. The RAL 7035 light grey color offers a neutral aesthetic that blends well within most industrial settings.
The SHD200 Series features three poles with each pole having a width of 17.5 mm—an essential detail when planning panel layouts or expansions. For connectivity options, the cable cross section accommodates up to 25 sq-mm both at the top and bottom connections while supporting bulbar cross sections greater than or equal to 16 sq-mm.
Power efficiency remains a key consideration; thus, this switch disconnector has been optimized to have low power loss at just 2.53 W under normal operating conditions—a critical factor in reducing overall energy consumption within larger systems.
Lastly, its short circuit capacity stands at an impressive 10 kA which provides confidence that the system can handle unexpected surges without compromising structural integrity or operational reliability.
Overall, whether you're upgrading existing infrastructure or embarking on new projects requiring dependable switching solutions—the SHD200 Series Switch Disconnector presents itself as a trustworthy component characterized by quality engineering tailored specifically towards meeting stringent industrial demands efficiently.
