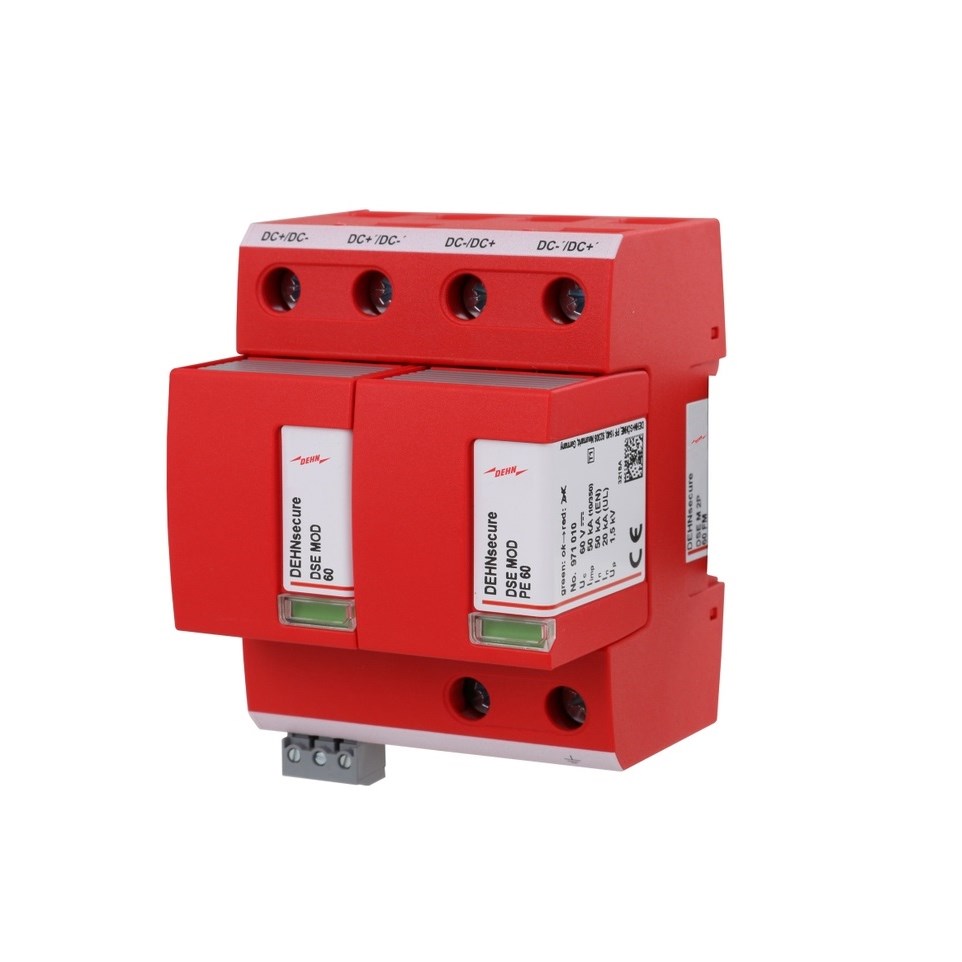

DEHN DSEM2P60FM Type-1 Lightning Current Arrester 25kA 50kA 60VDC DIN Rail Mount 0.12mm L 0.09mm W IP20

Product Code: DSEM2P60FM

  • Surge protection for DC circuits
  • Quick response time <= 100 ns
  • Handles lightning currents up to 50 kA
  • Type 1 SPD with IP20 protection
  • Easy DIN rail mounting
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Article No. 971226
Dimensions (mm) 0.09W x 0.12L x 0.09D
Lightning Impulse Current (10/350 &#181;s) - Iimp (kA) 25/50
Maximum Continuous Operating Voltage MCOV DC (V) 60
No. of Modules 4
No. of Poles 2P+PE
Signal C/O Contact Yes
SPD Type Type 1
Weight (kg) 0.68
Circuit Type MSB
Response Time (ns) &#8804; 100
Operating State/Fault Indication Green/Red
Short-Circuit Withstand Capability - Iscc? (kArms) 25
Product Type Type-1 Lightning Current Arrester
Brand DEHN
Degree of Protection IP20
Depth 0.09 mm
Length 0.12 mm
Lightning Impulse Current 25 kA, 50 kA
Mounting Type DIN Rail
Number of Modules 4
Rated Short Circuit Current 25 kA
Rated Voltage 60 VDC
Response Time <= 100 ns
SPD Class Type 1
Suitable For Use With DC Circuits
Weight 0.68 kg
Width 0.09 mm

Description

Coordinated two-pole spark-gap-based DEHNsecure modular lightning current arrester (classification type 1 according to EN 61643-11). Spark gap technology particularly suited for use in d.c. circuits. For protecting low-voltage consumer&#180;s installations against surges and even direct lightning strikes.
