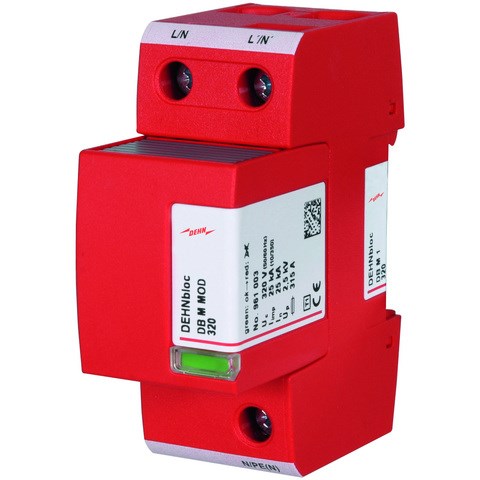

DEHN DBM1320 Lightning Current Arrester 25kA 1 PH 277V 35mm DIN Rail 36mm W 73mm D 90mm H Thermoplastic IP20

Product Code: DBM1320

  • Surge protection for 277 V, single-phase systems
  • Compact design, 36 mm width for DIN rail mount
  • Fast response time of <= 100 ns
  • High lightning current capacity of 50 kArms
  • Operates in temperatures from -40 to 80°C
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 36W x 90H x 66D
Lightning Impulse Current (10/350 &#181;s) - Iimp (kA) 25
Nominal Voltage AC (V) 277
Reference No. 961130
Suitable For Pluggable DIN Rail Mounted
Weight (kg) 0.325
No. of Conductors 1
Mounting Method DIN Rail 35mm
Maximum Continuous Voltage AC (V) 320
Product Type Lightning Current Arrester
Brand DEHN
Cross Section 50 sq-mm Stranded, 35 sq-mm Flexible, 35 sq-mm Stranded, 25 sq-mm Flexible
Degree of Protection IP20
Depth 73 mm
Fuse Rating 125 A
Height 90 mm
Lightning Current Carrying Capability 50 kArms
Lightning Impulse Current 25 kA
Material Thermoplastic
Mounting Type 35 mm DIN Rail
Number of Ports 1
Operational Temperature -40 to 80 deg C
Phase 1
Rated Voltage 277 V
Response Time <= 100 ns
SPD Class Type 1, Class I
Standards and Approvals UL
Voltage Protection Level <=2.5 kV
Weight 325 g
Width 36 mm
