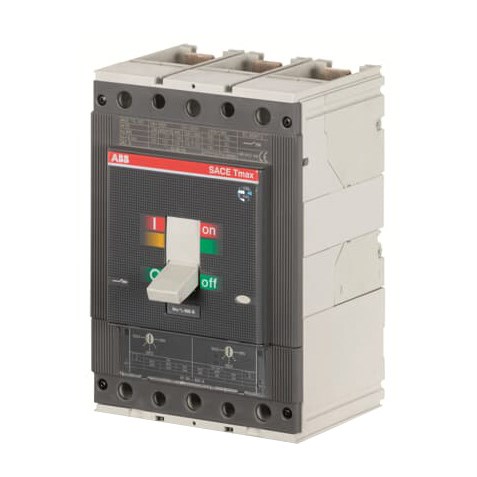

ABB 1SDA054525R1 Moulded Case Circuit Breaker 690VAC 100A 3-P 25kA Front For: T4

Product Code: 1SDA054525R1

  • Rated current of 100 A for reliable performance
  • Supports up to 690 VAC rated voltage
  • Breaking capacity of 25 kA ensures safety
  • Front connection type for easy installation
  • Complies with IEC 309 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Suitable For T4
Product Type Moulded Case Circuit Breaker
Brand ABB
Breaking Capacity 25 kA
Connection Type Front
Number of Poles 3
Power Loss 1.7 W
Rated Current 100 A
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 1000 V
Rated Voltage 690 VAC
Release Type EL
Standards and Approvals IEC 309
Suitable For Use With T4
Weight 3.5 kg
Width 105 mm
