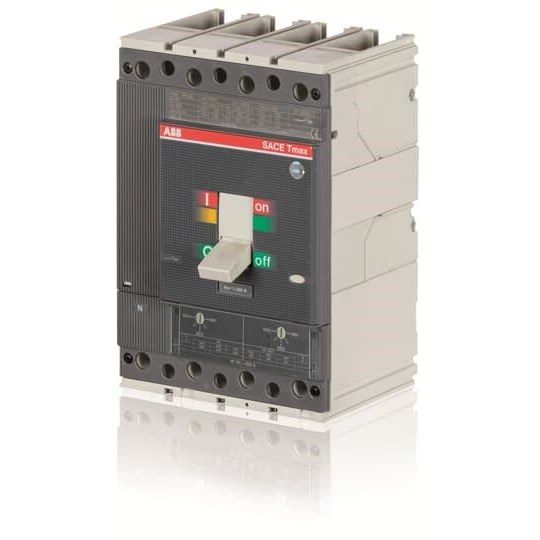

When it comes to selecting the right circuit breaker for your industrial or commercial needs, understanding the technical specifications is crucial. The T4 Frame circuit breaker offers a robust solution with its well-defined features tailored to meet demanding environments.
Designed for a rated current of 32 A, this circuit breaker ensures reliable performance in various applications. It boasts a high rated impulse withstand voltage of 8 kV and an impressive rated insulation voltage of 1150 V, making it suitable for both alternating current (AC) and direct current (DC) systems up to 1150/1000 VAC/VDC. This versatility allows it to integrate seamlessly into existing electrical setups.
The T4 Frame's trip unit type is TMD, featuring a thermal magnetic release (TM), which provides dependable protection by responding effectively to overcurrents. With a breaking capacity of 20 kA, this device can handle significant fault conditions without compromising safety or functionality.
Installation is straightforward thanks to its front connection type, ensuring ease of access and maintenance. Measuring at a width of only 140 mm, the compact design facilitates integration into space-constrained panels while maintaining excellent operational efficiency with minimal power loss at just 3.7 W.
Adhering to IEC 309 standards and approvals guarantees that this product meets international quality benchmarks, providing peace of mind regarding safety and reliability in operation. Weighing in at 3.05 kg, it strikes a balance between sturdiness and manageability during installation.
Moreover, compatibility with other components within the T4 series enhances system coherence and simplifies procurement processes for spare parts or complementary products.
In summary, the T4 Frame circuit breaker is engineered for those who prioritize durability and compliance with industry standards in their electrical systems. Its combination of advanced features makes it an ideal choice for professionals seeking efficiency without sacrificing safety or performance integrity in their installations.
