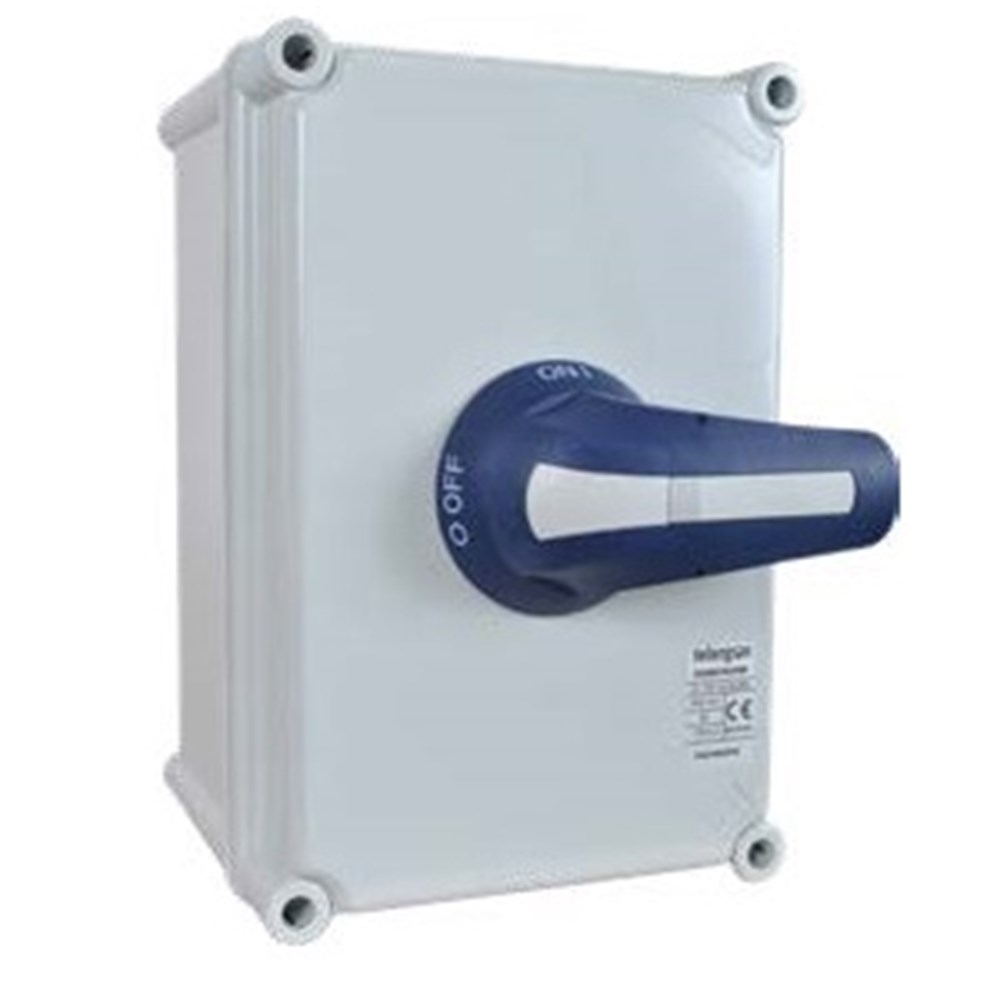

TELERGON TLB1254P/E REINFORCED POLYESTER ENCLOSED LOAD BREAK SWITCH 125A 4P 45kW

Product Code: TLB1254P/E

TLB series is a reinforced polyester enclosed load break switch with line and load side terminal covers. It features an opaque liftoff lid and has a 4P configuration. The switch is rated for AC21A at 690V with a current capacity of 125A. For AC23A at 690V, the current capacity is 85A and the power rating is 45kW. The cable size supported by this switch is 50mm². It has an IP65 rating and its dimensions are 180W x 270H x 170D mm.

Technical Specifications

Brand TELERGON
Cable Cross Section (mm²) 50
Degree of Protection IP65
Dimensions (mm) 180W X 270H X 170D
IP Rating IP65
Material Polyester
No. of Poles 4P
Operational Current AC-21A @ 690V (A) 125
Operational Current AC-23A @ 690V (A) 85
Operational Power AC-23A @ 690V (kW) 45
Poles 4P
Rated Operational Current AC-21A 690V (A) 125
Rated Operational Current AC-23A 690V (A) 85
Rated Operational Power AC-23A 690V (kW) 45
Series TLB
Sizes (mm) 180W x 270H x 170D
