Product Code: TLB2503P/SE

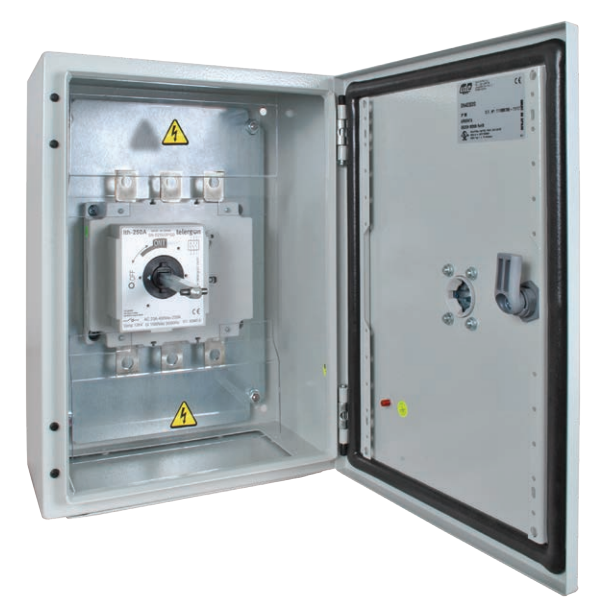

TLB series is a powder coat mild steel enclosed load break switch. It comes with line and load side terminal covers, as well as an opaque liftoff lid. This switch is designed for 3-phase AC applications with a voltage rating of 690V. The current rating for AC21A is 250A, while the current rating for AC23A is also 250A. Additionally, the power rating for AC23A is 138kW. The recommended cable size for this switch is 150mm². It has an IP65 protection rating and its dimensions are 300W x 400H x 210D mm.

Brand	TELERGON
Cable Cross Section (mm²)	150
Degree of Protection	IP65
Dimensions (mm)	300W X 400H X 210D
IP Rating	IP65
Material	Mild Steel
No. of Poles	3P
Operational Current AC-21A @ 690V (A)	250
Operational Current AC-23A @ 690V (A)	250
Operational Power AC-23A @ 690V (kW)	138
Poles	3P
Rated Operational Current AC-21A 690V (A)	250
Rated Operational Current AC-23A 690V (A)	250
Rated Operational Power AC-23A 690V (kW)	138
Series	TLB
Sizes (mm)	300W x 400H x 210D

Load Break Switches

TELERGON TLB2503P/SE POWDER COAT MILD STEEL ENCLOSED LOAD BREAK SWITCH 250A 3P
