Material	Steel
Mount Flange	4x Ø27 mm for 4x M24 (300 x 300 mm)
Height Above Ground Level (mm)	16380
Mast Segments	2
Max. Gust Wind Speed with Bucket Foundation (km/h)	135
Flange Plate Dimensions (mm)	400 x 400
Length of Air-Termination Rod (mm)	5380
Dimensions On-Site Concrete Foundation (mm)	1400 x 1400 x 900
Model	Interception rod
Suitable For	Air Termination Rods
Brand	DEHN
Accessory Type	Lightning Protection
Connection Type	Round conductor
Surface Protection	Hot-dip galvanized
Diameter (mm)	15
Dimensions (mm)	40W x 600H x 40D
Weight (kg)	230
Standards and Approvals	DIN EN 62561-(1+2), DIN EN 1991-1-4 + DIN EN 1991-1-4/NA

Lightning & Surge Protection

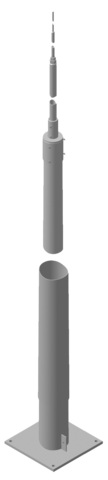

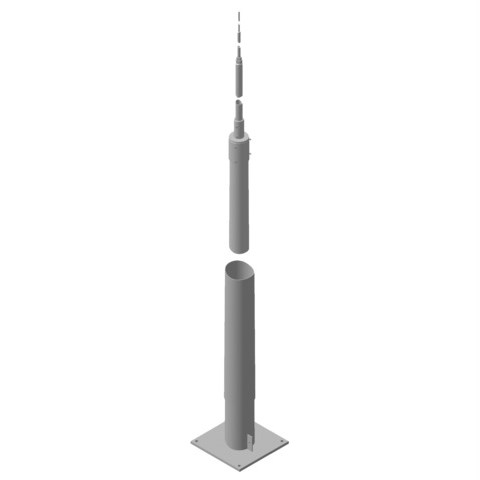

DEHN TELESCOPIC LPS MAST H16.35m ST/TZN C/W FLANGE 400X400mm 103016
