Specifications

Diameter (mm)	15
Dimensions (mm)	57W x 600H x 57D
Suitable For	Air Termination Rods
Weight (kg)	452
Surface Protection	Hot-dip galvanized
Mount Flange	8x Ø27 mm for 8x M24 (490 x 490 mm)
Height Above Ground Level (mm)	22380
Mast Segments	4
Max. Gust Wind Speed with Bucket Foundation (km/h)	129
Flange Plate Dimensions (mm)	565 x 565
Length of Air-Termination Rod (mm)	5380
Dimensions On-Site Concrete Foundation (mm)	1800 x 1800 x 900
Accessory Type	Lightning Protection

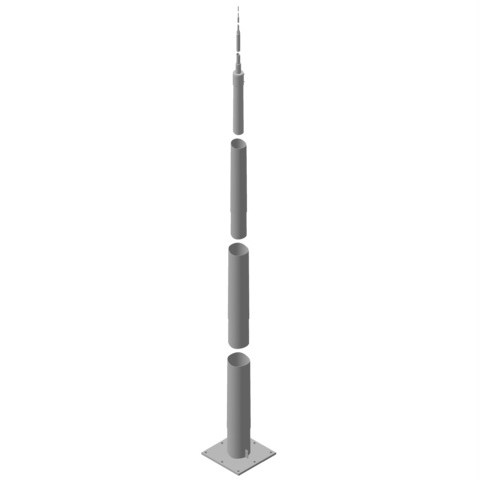

Product Type	Telescopic Lightning Protection Mast With Flange
Brand	DEHN
Connection Type	Round Conductor
Depth	57 mm
Finish	Hot Dip Galvanized
Height	600 mm
Material	Steel
Model	Interception rod
Size	15 mm
Standards and Approvals	DIN EN 62561-(1+2), DIN EN 1991-1-4, DIN EN 1991-1-4/NA
Suitable For Use With	Air Termination Rods
Weight	452 kg
Width	57 mm
