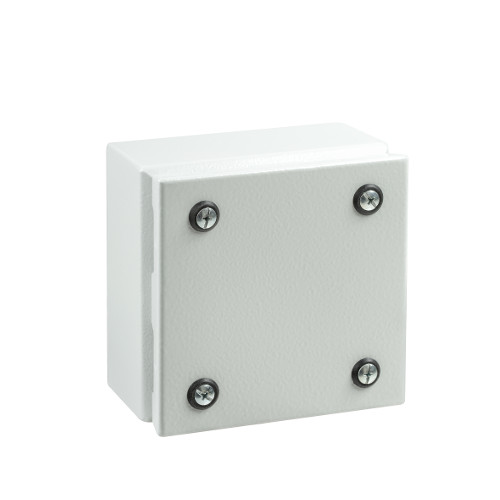

IDE IDE66 MILD STEEL TERMINAL BOX WITH PLAIN SIDES & SCREW-ON COVER 150Hx150Wx90Dmm MST151590G

Product Code: MST151590G

Mild steel terminal box with a grey RAL7035 polyester powdercoat finish. It has an IP65 rating for protection against dust and water. The box is equipped with an injected polyurethane sealing gasket to ensure a tight seal. Its dimensions are 150Hx150Wx90Dmm, with a usable internal space of 116x78mm.

Technical Specifications

Brand IDE
Ambient Temperature Range (°C) -25 to +60
Application Industrial environments, manufacturing companies requiring a high degree of protection against dust, splashes and impacts.
Certifications UL508A
Colour RAL 7035
Customs Tariff Number 85.38.10.00
Degree of Protection IP66
Dimensions (mm) 150H x 150W x 90D
Directive 2014/35/EU
EAN 8431044016627
ETIM 8.0 EC002713
Finish Coated with hardened polyester paint, textured, with UV protection
Installation Surface
Lock Type Lid fastened with fast jackscrew with watertight caps
Material Cold-rolled steel EN 10130+A1
Maximum Operational Voltage (V) 1000 AC / 1500 DC
Mounting Plate Without mounting plate. 2 side brackets
NEMA Degree of Protection NEMA 1, 4, 12
Product End of Life It does not require specific recycling operations.
Rated Impact Resistance IK10
Sealing Gasket Injected polyurethane sealing gasket
Standards IEC 62208
Supply The body, cover and accessory bag are supplied shrink-wrapped.
Thickness (mm) 1.2
Type of Door Opaque lid
Usable Internal Space (mm) 125H x 125W
Wall Fixing (mm) 110H x 110W
Weight (kg) 1.3
