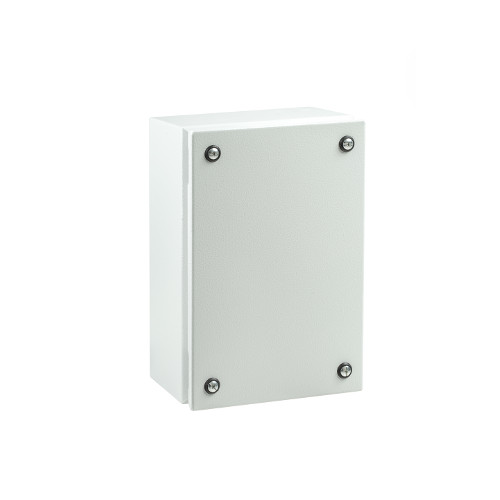

IDE MST302090G Mild Steel Terminal Box Cold Rolled Steel 200W 300H 90D RAL7035 Light Grey IP66

Product Code: MST302090G

  • Steel terminal box, IP66 protection
  • Rated 1000 VAC/1500 VDC for high voltage
  • Surface mount, light grey RAL 7035
  • IK10 impact resistance, robust design
  • Fast jackscrew lid with watertight caps
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Ambient Temperature Range (°C) -25 to +60
Dimensions (mm) 300H x 200W x 90D
Thickness (mm) 1.2
Usable Internal Space (mm) 275H x 175W
Weight (kg) 2.6
Supply The body, cover and accessory bag are supplied shrink-wrapped.
EAN 8431044016672
Customs Tariff Number 85.38.10.00
ETIM 8.0 EC002713
Product End of Life It does not require specific recycling operations.
Installation Surface
Type of Door Opaque lid
Mounting Plate Without mounting plate. 2 side brackets
Sealing Gasket Injected polyurethane sealing gasket
NEMA Degree of Protection NEMA 1, 4, 12
Maximum Operational Voltage (V) 1000 AC / 1500 DC
Directive 2014/35/EU
Wall Fixing (mm) 260H x 160W
Standards IEC 62208
Certifications UL508A
Product Type Mild Steel Terminal Box
Brand IDE
Ambient Temperature -25 to 60 deg C
Application Industrial environments, manufacturing companies requiring a high degree of protection against dust, splashes and impacts
Colour Light Grey RAL 7035
Degree of Protection IP66
Depth 90 mm
Finish Coated with Hardened Polyester Paint, Textured with UV Protection
Gasket Material Polyurethane
Height 300 mm
Lock Type Lid fastened with fast jackscrew with watertight caps
Material Cold Rolled Steel
Mounting Type Surface
NEMA Rating NEMA 1, 4, 12
Rated Impact Resistance IK10
Rated Operational Voltage 1000 VAC, 1500 VDC
Standards and Approvals Directive 2014/35/EU, IEC 62208, UL 508A
Thickness 1.2 mm
Usable Internal Space 275 mm H x 175 mm W
Wall Fixing Dimensions 260 mm H x 160 mm W
Weight 2.6 kg
Width 200 mm

Description

Mild steel terminal box with a grey RAL7035 polyester powdercoat finish. It has an IP65 rating for protection against dust and water. The box features an injected polyurethane sealing gasket to ensure a tight seal. Its dimensions are 300Hx200Wx90Dmm, with a usable internal space of 266x78mm.
