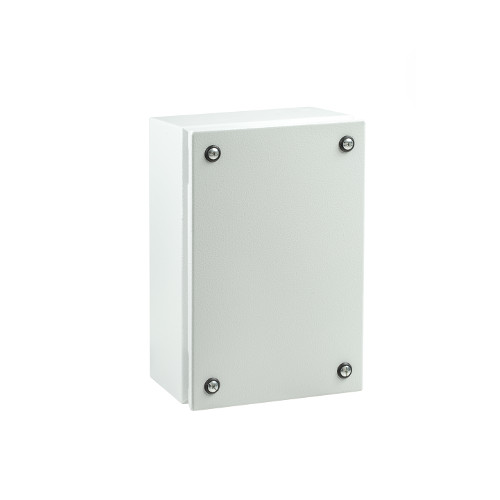

IDE MST3030135G Mild Steel Terminal Box Cold Rolled Steel 300W 300H 135D RAL7035 Light Grey IP66

Product Code: MST3030135G

  • IP66 rated for dust and water protection
  • Made from cold rolled steel, light grey finish
  • Surface mount design with fast jackscrew lid
  • Rated for 1000 VAC and 1500 VDC operations
  • UV-protected hardened polyester paint finish
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Ambient Temperature Range (°C) -25 to +60
Dimensions (mm) 300H x 300W x 135D
Thickness (mm) 1.2
Usable Internal Space (mm) 266H x 118W
Weight (kg) 4.2
Supply The body, cover and accessory bag are supplied shrink-wrapped.
EAN 8431044016764
Customs Tariff Number 85.38.10.00
ETIM 8.0 EC002713
Product End of Life It does not require specific recycling operations.
Installation Surface
Type of Door Opaque lid
Mounting Plate Without mounting plate. 2 side brackets
Sealing Gasket Injected polyurethane sealing gasket
NEMA Degree of Protection NEMA 1, 4, 12
Maximum Operational Voltage (V) 1000 AC / 1500 DC
Directive 2014/35/EU
Wall Fixing (mm) 260H x 260W
Standards IEC 62208
Certifications UL508A
Product Type Mild Steel Terminal Box
Brand IDE
Ambient Temperature -25 to 60 deg C
Application Industrial environments, manufacturing companies requiring a high degree of protection against dust, splashes and impacts
Colour Light Grey RAL 7035
Degree of Protection IP66
Depth 135 mm
Finish Coated with Hardened Polyester Paint, Textured with UV Protection
Gasket Material Polyurethane
Height 300 mm
Lock Type Lid fastened with fast jackscrew with watertight caps
Material Cold Rolled Steel
Mounting Type Surface
NEMA Rating NEMA 1, 4, 12
Rated Impact Resistance IK10
Rated Operational Voltage 1000 VAC, 1500 VDC
Standards and Approvals Directive 2014/35/EU, IEC 62208, UL 508A
Thickness 1.2 mm
Usable Internal Space 266 mm H x 118 mm W
Wall Fixing Dimensions 260 mm H x 260 mm W
Weight 4.2 kg
Width 300 mm

Description

Mild steel terminal box with a grey RAL7035 polyester powdercoat finish. It has an IP65 rating for protection against dust and water. The box features an injected polyurethane sealing gasket to ensure a tight seal. Its dimensions are 300Hx300Wx135Dmm, with a usable internal space of 266x118mm.
