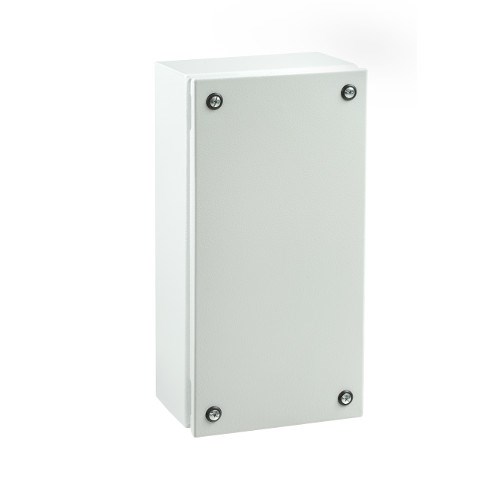

This steel terminal box is a robust solution for professionals seeking reliable protection in demanding industrial environments. Crafted from cold-rolled steel, this enclosure offers durability and resilience with a thickness of 1.2 mm, ensuring long-lasting performance.
Designed to accommodate both AC and DC applications, it supports rated operational voltages up to 1000 VAC and 1500 VDC. Its IP66 rating guarantees excellent protection against dust ingress and powerful water jets, making it suitable for various challenging settings.
Measuring 400 mm in width and height with a depth of 135 mm, this terminal box provides ample space for your components while maintaining a compact footprint. The usable internal dimensions are optimized at 360 mm by 360 mm to ensure efficient utilization of space without compromising accessibility.
The light grey RAL 7035 finish not only enhances its aesthetic appeal but also features hardened polyester paint with UV protection, ensuring the enclosure remains resilient against environmental factors over time. The textured finish adds an extra layer of toughness.
Installation is straightforward thanks to its surface mounting design. Wall fixing dimensions match the internal usable space at 360 mm by 360 mm, simplifying alignment during setup.
Engineered to withstand ambient temperatures ranging from -25°C to +60°C, this terminal box is versatile enough for diverse climates or indoor environments where temperature control is necessary. Weighing in at just 6.5 kg, it's manageable yet sturdy enough for secure installations.
Safety standards are thoroughly met with approvals under Directive 2014/35/EU, IEC 62208, and UL 508A certifications—reassuring compliance across multiple regions including Australia.
Security is enhanced through a lid fastened with fast jackscrew featuring watertight caps that prevent moisture ingress while allowing easy access when needed. Its polyurethane gasket further ensures an airtight seal.
Rated IK10 impact resistance highlights its capability to endure mechanical impacts without compromising integrity—a vital feature in busy manufacturing setups where accidental knocks may occur frequently.
NEMA ratings of NEMA 1, NEMA 4, and NEMA 12 emphasize adaptability across different industrial contexts requiring varying degrees of enclosure protection—from basic indoor use (NEMA1) right through to more stringent conditions involving dust-tightness or splash resistance (NEMA4/NEMA12).
This opaque-covered steel terminal box stands as an ideal choice for manufacturing companies prioritizing high-level defense against environmental challenges while maintaining operational efficiency within their electrical systems infrastructure.
