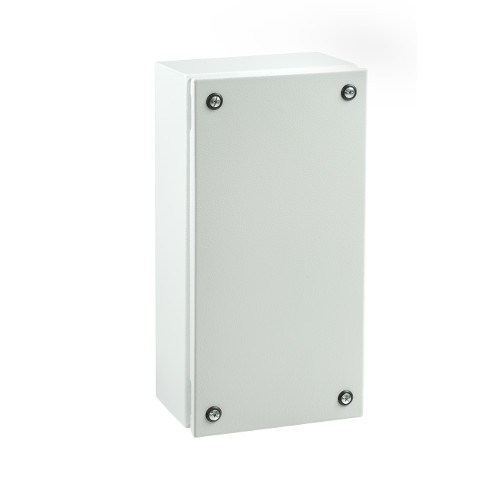

IDE MST5020135G Mild Steel Terminal Box Cold Rolled Steel 200W 500H 135D RAL7035 Light Grey IP66

Product Code: MST5020135G

  • Robust IP66 protection for harsh environments
  • Operates at 1000 VAC/1500 VDC
  • Durable cold rolled steel construction
  • Fast jackscrew lid with watertight caps
  • UV-protected polyester paint finish
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Ambient Temperature Range (°C) -25 to +60
Dimensions (mm) 500H x 200W x 135D
Thickness (mm) 1.2
Usable Internal Space (mm) 466H x 118W
Weight (kg) 4.6
Supply The body, cover and accessory bag are supplied shrink-wrapped.
EAN 8431044016801
Customs Tariff Number 85.38.10.00
ETIM 8.0 EC002713
Product End of Life It does not require specific recycling operations.
Installation Surface
Type of Door Opaque lid
Mounting Plate Without mounting plate. 2 side brackets
Sealing Gasket Injected polyurethane sealing gasket
NEMA Degree of Protection NEMA 1, 4, 12
Maximum Operational Voltage (V) 1000 AC / 1500 DC
Directive 2014/35/EU
Wall Fixing (mm) 460H x 160W
Standards IEC 62208
Certifications UL508A
Product Type Mild Steel Terminal Box
Brand IDE
Ambient Temperature -25 to 60 deg C
Application Industrial environments, manufacturing companies requiring a high degree of protection against dust, splashes and impacts
Colour Light Grey RAL 7035
Degree of Protection IP66
Depth 135 mm
Finish Coated with Hardened Polyester Paint, Textured with UV Protection
Gasket Material Polyurethane
Height 500 mm
Lock Type Lid fastened with fast jackscrew with watertight caps
Material Cold Rolled Steel
Mounting Type Surface
NEMA Rating NEMA 1, 4, 12
Rated Impact Resistance IK10
Rated Operational Voltage 1000 VAC, 1500 VDC
Standards and Approvals Directive 2014/35/EU, IEC 62208, UL 508A
Thickness 1.2 mm
Usable Internal Space 466 mm H x 118 mm W
Wall Fixing Dimensions 460 mm H x 160 mm W
Weight 4.6 kg
Width 200 mm

Description

The mild steel terminal box is coated with a grey RAL7035 polyester powdercoat, making it resistant to corrosion. It has an IP65 rating, indicating its high level of protection against dust and water. The box features an injected polyurethane sealing gasket, ensuring a tight seal. With dimensions of 500Hx200Wx135Dmm and a usable internal space of 466x118mm, it provides ample room for housing electrical components.
