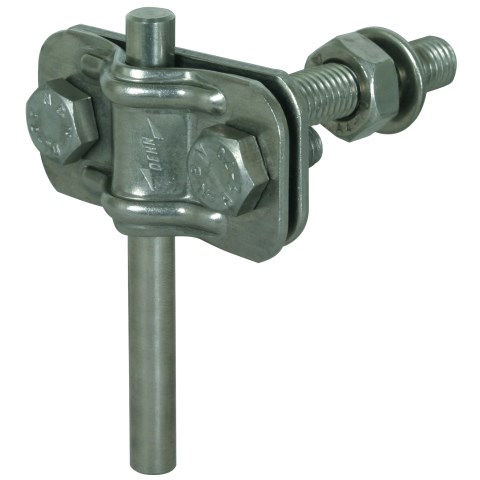

DEHN 478129 Connection Clamp 8-10mm 30mm M10 x 60mm M8 x 16mm Screw 316 Stainless Steel

Product Code: 478129

  • Made from durable 316 stainless steel
  • Suitable for fixed earthing systems
  • Handles lightning currents up to 50 kA
  • Meets EN 62561-1 standards
  • Clamping range of 8-10 mm, 30 mm
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 58x30x2.5
Suitable For Earthing
Weight (kg) 0.15
Weight (g) 140
Surface Protection Untreated
Gross Weight (g) 148
Rod Diameter (mm) 8
Type Equipotential Bonding
Clamping Range (mm) 8-10/30
Product Type Connection Clamp
Brand DEHN
Clamping Range 8-10 mm, 30 mm
Connection Type M10 x 60 mm, M8 x 16 mm Screw
Connector Type Connection terminal
Depth 2.5 mm
Finish Untreated
Height 30 mm
Lid Screw Type Hexagon screw
Lightning Current Carrying Capability 50 kA
Material 316 Stainless Steel
Rated Short Circuit Current 2.7 kA
Screw Size M8/M10
Standards and Approvals EN 62561-1
Suitable For Use With Fixed Earthing
Weight 140 g
Width 58 mm
