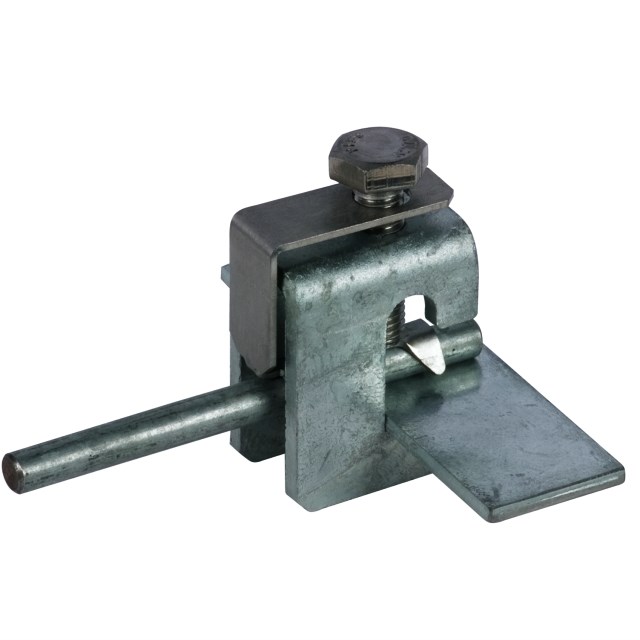

DEHN 372018 Connection Clamp 5-18mm M10 x 35mm Screw Steel

Product Code: 372018

  • M10 x 35 mm screw connection
  • Steel material with hot dip galvanization
  • Clamping range of 5-18 mm
  • Handles lightning current up to 100 kA
  • Complies with EN 62561-1 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 4W x 7H x 2D
Suitable For Diameter round conductor 6mm
Weight (kg) 0.16
Weight (g) 158
Surface Protection Hot-dip galvanized
Gross Weight (g) 161.9
Rod Diameter (mm) 6 - 10
Clamping Range (mm) 5 - 18
Product Type Connection Clamp
Brand DEHN
Clamping Range 5-18 mm
Connection Type M10 x 35 mm Screw
Connector Type Connection clamp
Depth 2 mm
Finish Hot Dip Galvanized
Height 7 mm
Lid Screw Type Hexagon screw
Lightning Current Carrying Capability 100 kA
Material Steel
Screw Size M10
Standards and Approvals EN 62561-1
Weight 158 g
Width 4 mm
