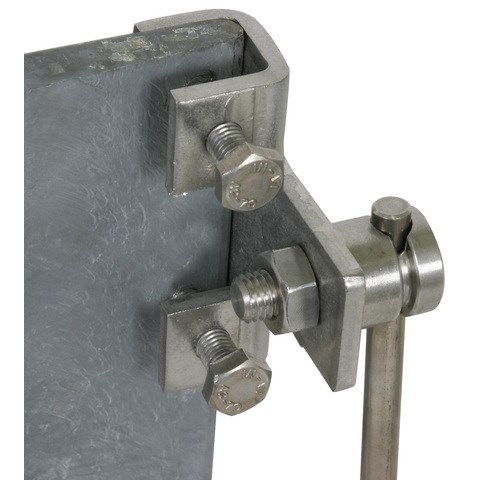

DEHN 372229 Horizontal Connection Clamp W/KS Connector 3-18mm M8 x 25mm Screw Stainless Steel

Product Code: 372229

  • M8 x 25 mm screw connection
  • Stainless steel construction
  • Clamping range of 3-18 mm
  • Handles lightning currents up to 50 kA
  • Complies with EN 62561-1 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 6W x 8H x 5D
Suitable For Diameter round conductor 6mm
Weight (kg) 0.29
Weight (g) 283
Surface Protection Untreated
Gross Weight (g) 287.9
Rod Diameter (mm) 6 - 10
Clamping Range (mm) 3 - 18
Product Type Horizontal Connection Clamp With KS Connector
Brand DEHN
Clamping Range 3-18 mm
Connection Type M8 x 25 mm Screw
Connector Type Connection clamp
Depth 5 mm
Finish Untreated
Height 8 mm
Lid Screw Type Hexagon screw
Lightning Current Carrying Capability 50 kA
Material Stainless Steel
Screw Size M8
Standards and Approvals EN 62561-1
Weight 283 g
Width 6 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
