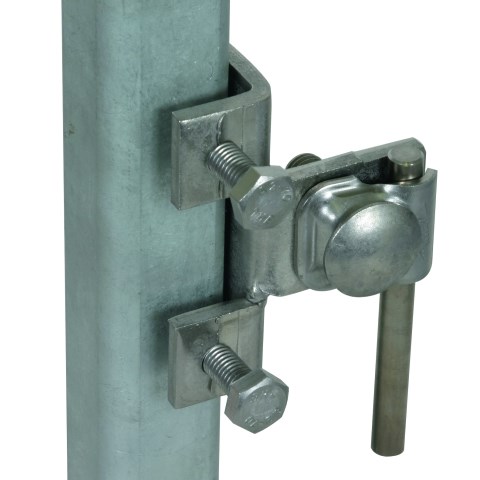

DEHN 372149 Vertical Connection Clamp 18-35mm M8 x 25mm Screw Stainless Steel

Product Code: 372149

  • M8 x 25 mm screw connection
  • Stainless steel construction
  • Clamping range: 18-35 mm
  • Handles lightning current up to 50 kA
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 6W x 8H x 6D
Suitable For Diameter round conductor 6mm
Weight (kg) 0.33
Weight (g) 326
Surface Protection Untreated
Gross Weight (g) 331.1
Rod Diameter (mm) 6 - 10
Clamping Range (mm) 18 - 35
Product Type Vertical Connection Clamp
Brand DEHN
Clamping Range 18-35 mm
Connection Type M8 x 25 mm Screw
Connector Type Connection clamp
Depth 6 mm
Finish Untreated
Height 8 mm
Lid Screw Type Hexagon screw
Lightning Current Carrying Capability 50 kA
Material Stainless Steel
Screw Size M8
Standards and Approvals EN 62561-1
Weight 326 g
Width 6 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
