Product Code: CM-MSS.32P

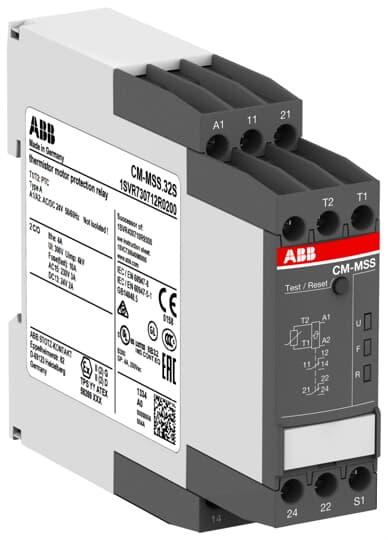

The Thermistor Motor Protection Relay is designed to monitor PTC temperature sensors using one sensor circuit. It features short-circuit detection and dynamic interrupted wire detection. The relay operates on a rated control supply voltage of 24 V AC/DC and has 2 CO (SPDT) output contacts rated at 250 V / 4 A. The relay also includes interrupted-wire monitoring and can be reset automatically, manually, or remotely after the failure has been resolved. It is equipped with push-in terminals for easy installation.

Brand	ABB
Connection Type	Push-in terminals
Contacts	2CO (SPDT)
Degree of Protection	IP50 (Housing), IP20 (Terminals)
Dimensions (mm)	22.5W x 85.6H x 103.7D
Duty Time	100%
Function	Short-circuit detection, Dynamic interrupted wire detection
LED Colour	U: Green, F: Red, R: Yellow
Mounting Type	DIN Rail
No. of LED	3
Operational Temperature Range (°C)	-25 to +60
Overvoltage Category	III
Pollution Degree	3
Rated Control Supply Voltage AC/DC (V)	24
Rated Current (A)	4
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	4
Reference No.	1SVR740712R0200
Sensor Type	PTC Type A
Standards and Approvals	CAN/CSA C22.2 No.14, EN 50495, IEC/EN 63000, IEC/EN 60079-7, IEC/EN 60947-5-1, IEC/EN 60947-8, UL 508
Storage Temperature (°C)	-40 - +85
Terminal Type	Push-in
Weight (kg)	0.12
