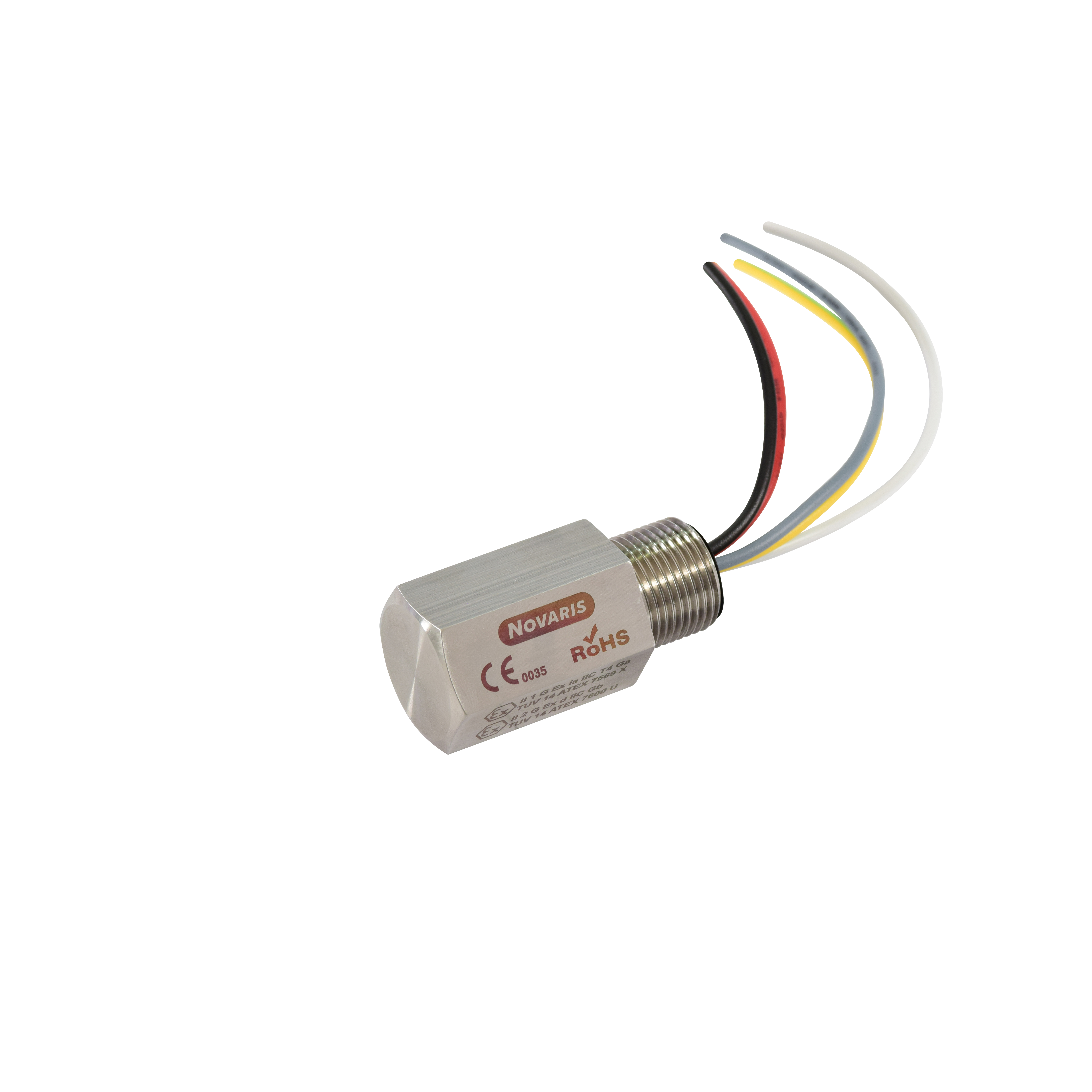

When it comes to safeguarding sensitive electrical systems, the right surge protector is a critical component. This robust Surge Protector is engineered to deliver reliable performance under various industrial and commercial conditions.
Designed with an 18 VDC rated voltage and a power capacity of 2.2 W, this device ensures your equipment remains protected against unexpected electrical surges. It features a rated current of 5 kA per line and 10 kA in common mode, making it suitable for environments where high surge currents are expected.
The connection type is shunt, providing ease of installation and maintenance. With an IP67 degree of protection, this surge protector is dust-tight and can withstand temporary immersion in water—ideal for harsh environmental conditions.
Installation flexibility is further enhanced by its M20 x 1.5 thread mounting type. The compact dimensions (53 mm length, 24 mm width, and 27 mm height) ensure that it can be easily integrated into existing setups without requiring extensive modifications.
Operational reliability across varying temperatures (-20 to 40 degrees Celsius) makes this surge protector versatile for different applications. The use of stainless steel material adds durability while maintaining a lightweight design at just 180 g.
This product meets several international standards including IEC 60079-0, IEC 60079-1, IEC 60079-11, IEC 61643-21:2012 as well as AS/NZS 1768:2007 ensuring compliance with global safety requirements. Additionally, the UL certifications (UL1449 Third Edition and UL497B), along with ITU-T K.44:2012 approval underline its robust protective capabilities.
With a rapid response time of less than five nanoseconds (<5 ns) and capacitance rated at 10 nF, the device effectively mitigates transient voltages before they impact connected equipment. Its voltage protection level stands at an impressive 50 V which further enhances system security.
Protection modes include both transverse and common modes across three lines providing comprehensive coverage against diverse types of electrical disturbances.
This surge protector operates efficiently within humidity levels ranging from five to ninety-five percent ensuring consistent performance even in challenging atmospheric conditions—making it an excellent choice for Australian technical professionals seeking dependable protection solutions for their infrastructure needs.
