Specifications

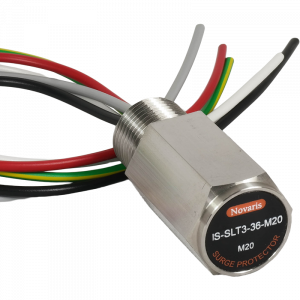

Product Type	Threaded Signal Surge Protector
Brand	NOVARIS
Capacitance	10 nF
Connection Type	Shunt
Degree of Protection	IP67
Height	27 mm
Humidity	5-95%
Length	53 mm
Material	Stainless Steel
Modes of Protection	Transverse and Common Modes
Mounting Type	M20 x 1.5 Thread
Number of Lines	4
Operational Temperature	-20 to 40 deg C
Rated Current	5 kA (Per Line), 10 kA (Common Mode)
Rated Power	2.2 W
Rated Voltage	18 VDC
Response Time	<5 ns
Standards and Approvals	IEC 60079-0, IEC 60079-1, IEC 60079-11, IEC 61643-21:2012, AS/NZS 1768:2007, UL 1449 3rd Edition and UL 497B, ITU-T K.44: 2012
Voltage Protection Level	50 V
Weight	180 g
Width	24 mm
