Specifications

Operational Temperature Range (°C)	-40 to 85
No. of Lines	4 Lines
Maximum Continuous Voltage DC (V)	65
Maximum Continuous Voltage AC (V)	50
Maximum Discharge Current (8/20µs) (kA)	5 per Line
Enclosure Material	Stainless Steel

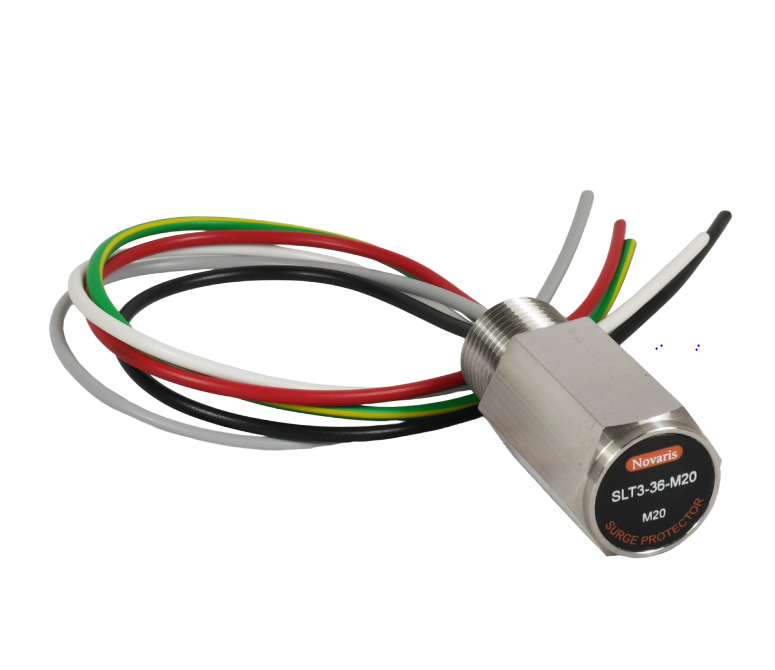

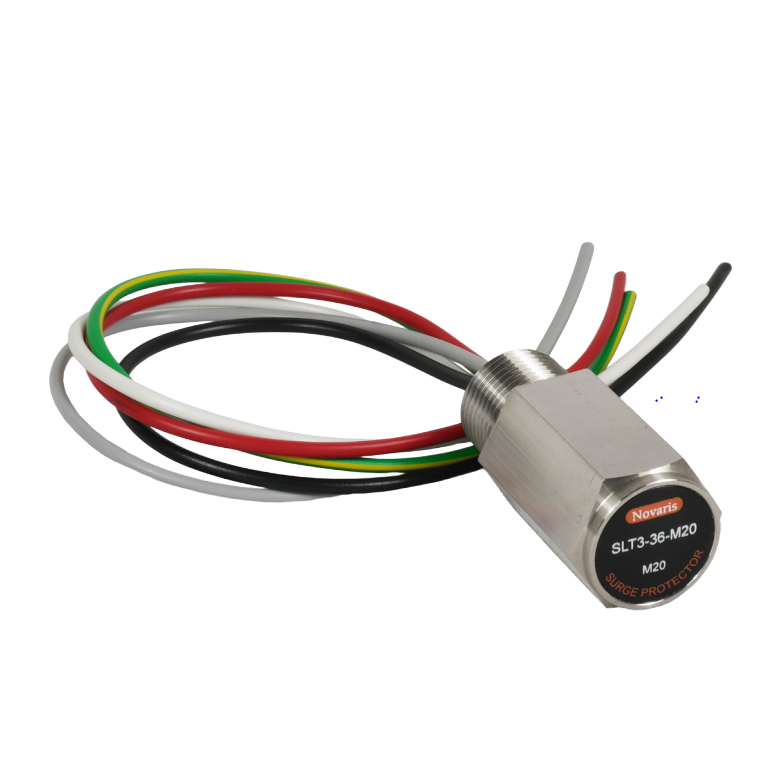

Product Type	Threaded Signal Surge Protector
Brand	NOVARIS
Capacitance	1 nF
Connection Type	Shunt
Degree of Protection	IP67
Height	27 mm
Humidity	5-95%
Length	53 mm
Material	Stainless Steel
Modes of Protection	Transverse and Common Modes
Mounting Type	M20 x 1.5 Thread
Number of Lines	4
Operational Temperature	-40 to 85 deg C
Rated Current	5 kA (Per Line), 10 kA (Common Mode)
Rated Voltage	65 VDC
Response Time	<5 ns
Standards and Approvals	IEC 61643-21:2012, AS/NZS 1768:2007, UL 1449 3rd Edition and UL 497B, ITU-T K.44: 2012
Thread Size	M20 x 1.5
Voltage Protection Level	100 V
Weight	165 g
Width	24 mm
