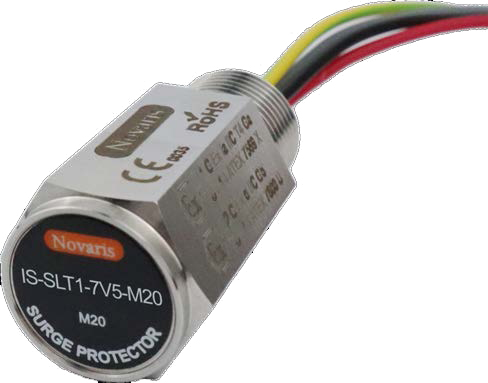

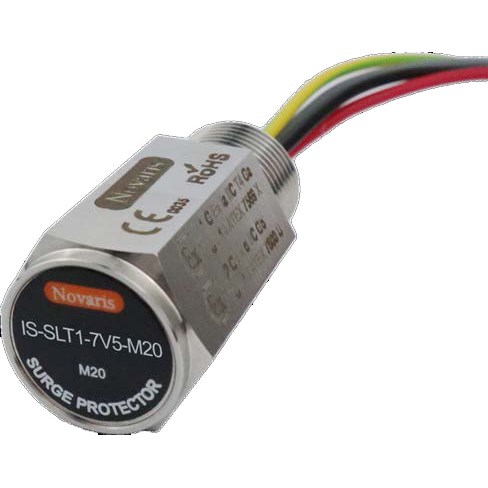

In the realm of industrial and commercial electrical systems, protection from voltage surges is paramount. The Surge Protector described here offers robust performance tailored to safeguard your sensitive equipment. With a rated voltage of 7 VDC and a rated power of 2.2 W, this surge protector is engineered for precision applications where reliability is crucial.
This device can handle a significant current with its capacity to manage up to 5 kA per line and 10 kA in common mode, ensuring that it can effectively mitigate the impact of electrical surges. Its shunt connection type allows for seamless integration into existing systems, while the M20 x 1.5 thread mounting ensures secure installation.
Durability is further emphasized by its IP67 degree of protection, making it dust-tight and capable of withstanding immersion in water up to one meter deep for short periods. This feature extends its usability across various environments where exposure to harsh conditions might be a concern.
Measuring at a compact size—53 mm in length, 24 mm in width, and 27 mm in height—this surge protector fits easily into tight spaces without compromising on performance or accessibility. Despite its small footprint, it weighs a solid 180 g due to its stainless steel construction, which enhances both durability and resistance to corrosion.
The operational temperature range from -20°C to +40°C ensures reliable performance across diverse climates found throughout Australia. Additionally, it adheres to an impressive array of standards: IEC 60079-0, IEC 60079-1, IEC 60079-11 for explosive atmospheres; IEC 61643-21:2012 for low-voltage surge protective devices; AS/NZS 1768:2007 specific to lightning protection; UL certifications (UL1449 and UL497B) affirming safety compliance; as well as ITU-T K.44:2012 related to telecommunications installations.
With less than five nanoseconds response time and wide humidity tolerance from five percent up to ninety-five percent relative humidity levels—the device swiftly reacts under varying environmental conditions without delay or degradation over time.
It provides effective transverse and common mode protections with capacitance measured at twenty nanofarads (nF), offering enhanced defense against differential disturbances while maintaining optimal signal integrity within your system architecture.
Designed specifically for one pair line configurations—it’s an ideal choice when safeguarding singular critical connections against transient voltages becomes necessary alongside other measures already implemented within broader infrastructure setups like grounding schemes etcetera
Overall—a smart investment given today’s increasingly complex electrical landscapes requiring advanced solutions capable not only meeting but often exceeding standard expectations placed upon them by industry professionals worldwide
