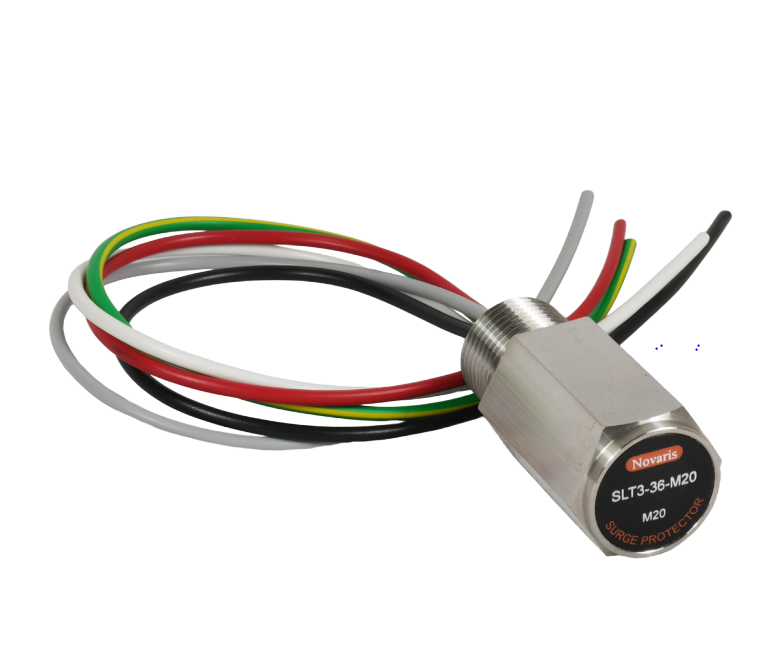

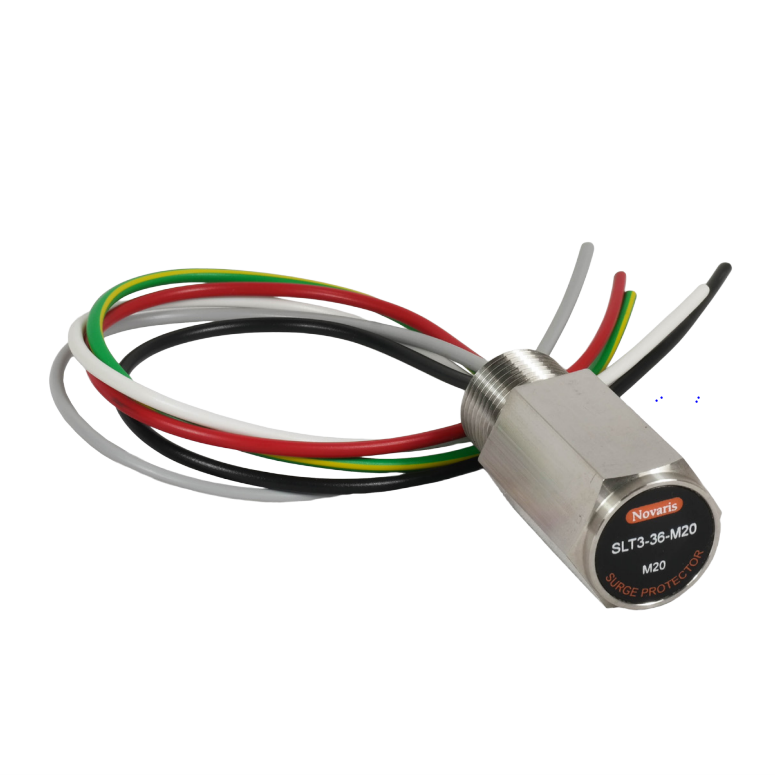

When it comes to safeguarding your electrical systems, this Surge Protector stands as a robust choice for industrial and commercial applications. Designed with precision, it offers dependable protection against surges and transient voltages, ensuring the longevity and reliability of your equipment.
This surge protector is engineered to handle a rated voltage of 7 VDC with impressive current ratings—5 kA per line and 10 kA in common mode. Its shunt connection type ensures efficient diversion of excess energy away from sensitive components, minimizing potential damage.
Crafted from stainless steel, this surge protector not only provides durability but also maintains its integrity under harsh conditions. With an IP67 degree of protection, it is resilient against dust ingress and water immersion up to one meter depth for 30 minutes. This makes it ideal for both indoor and outdoor installations where exposure to the elements is a concern.
The device's compact dimensions—53 mm in length, 24 mm in width, and 27 mm in height—combined with its lightweight design at just 165 grams make installation straightforward without compromising on space or structural load. The mounting type features a convenient 1/2 inch NPT thread that allows secure attachment to various setups.
Operating efficiently across a wide temperature range from -40 to 85 degrees Celsius, this surge protector adapts well to extreme environmental conditions. It supports humidity levels between 5% and 95%, further enhancing its versatility in diverse climates.
In terms of performance standards, this product complies with IEC 61643-21:2012, AS/NZS 1768:2007, UL 1449 (3rd Edition), UL 497B, and ITU-T K.44:2012 certifications. These endorsements underscore its adherence to global safety benchmarks ensuring peace of mind when integrating into your system.
With a rapid response time of less than five nanoseconds (ns), the surge protector swiftly mitigates voltage spikes before they can cause harm. Its capacitance value stands at an optimal level of 20 nF while maintaining a voltage protection level at an effective threshold of up to 45 V.
Protection modes include transverse and common modes across four lines providing comprehensive coverage against various types of electrical disturbances. This multi-line capability enhances overall system resilience by distributing protective measures uniformly across connected circuits.
Incorporating such advanced specifications into your infrastructure means investing in reliable defense mechanisms that preserve operational continuity while reducing downtime risks associated with power anomalies.
Whether you're looking at expanding current systems or fortifying new installations this surge protector presents itself as an essential component engineered for high-performance environments demanding consistent quality assurance over time.
