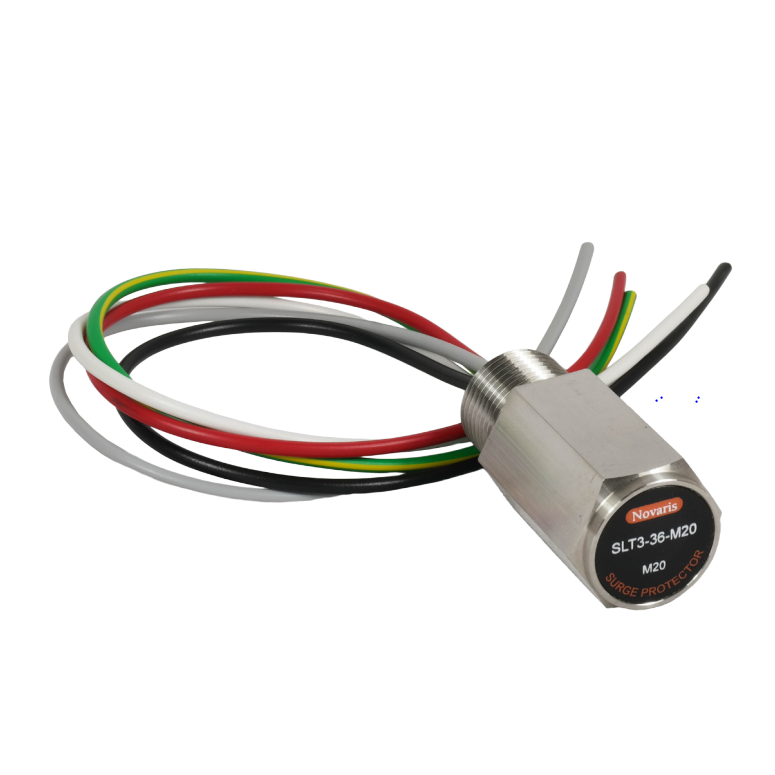

When it comes to safeguarding your industrial and commercial electrical systems, this surge protector stands as a robust choice. Designed for environments demanding high reliability, it offers impressive specifications that cater to the technical needs of professionals in the field.
With a rated voltage of 8 VDC and a rated current capacity of 5 kA per line and 10 kA in common mode, this surge protector provides substantial protection against transient overvoltages. Its shunt connection type ensures efficient diversion of excess voltage away from critical components.
The device's IP67 degree of protection guarantees resistance against dust ingress and immersion in water up to one meter for 30 minutes, making it suitable for harsh outdoor or industrial settings. The mounting is facilitated by a 1/2 inch NPT thread, allowing straightforward installation into existing systems.
Measuring at a compact length of 53 mm, width of 24 mm, and height of 27 mm, this surge protector fits seamlessly into space-constrained setups without compromising on performance. Weighing just 165 grams and constructed from durable stainless steel material, it promises longevity even under challenging conditions.
Operating effectively across temperatures ranging from -40 to +85 degrees Celsius and supporting humidity levels between 5% to 95%, it's engineered to perform reliably in diverse climatic conditions. With an ultra-fast response time of less than five nanoseconds (ns), the device swiftly mitigates potentially damaging surges before they can impact sensitive equipment.
The capacitance stands at an optimal level of 20 nF with a voltage protection level set at an impressive 45 volts. This ensures that both transverse and common mode interferences are adequately addressed across its four lines of protection.
Adhering to rigorous standards like IEC 61643-21:2012, AS/NZS1768:2007, UL1449 Third Edition as well as UL497B standards along with ITU-T K.44:2012 guidelines demonstrates its compliance with international safety benchmarks—further solidifying its reputation as a reliable choice for protecting valuable electronic assets.
This comprehensive suite makes it clear that this surge protector is not only built for endurance but also designed with precision engineering aimed at delivering top-tier performance where it's needed most.
