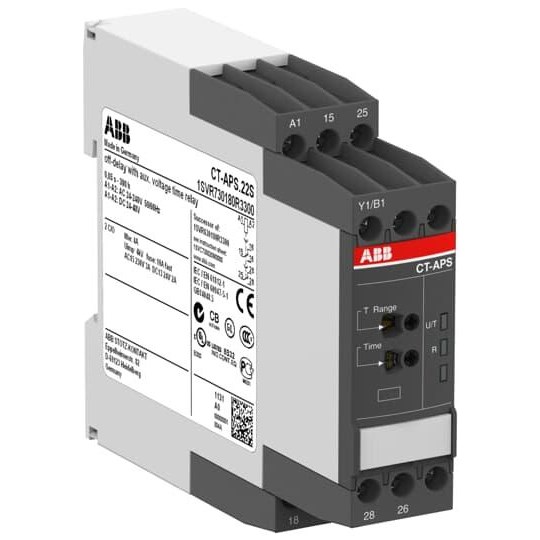

This versatile industrial component is designed to meet a range of electrical and automation needs, offering flexibility and reliability in various applications. With a rated voltage spanning from 24-240 VAC/VDC and an additional option for 24-48 VDC, this product accommodates diverse power requirements efficiently. Its ability to handle a rated current of 4 A ensures it can support moderate loads effectively.
The device operates at both 50 Hz and 60 Hz frequencies, making it suitable for international use where different frequency standards are present. The contact configuration features a dual changeover (2CO) single pole double throw (SPDT) setup, providing enhanced switching capabilities for complex control systems.
Installation is straightforward with its compatibility with standard DIN rail mounting options—either the 35 x 15 mm or the more compact 35 x 7.5 mm rails—ensuring seamless integration into existing panels or enclosures. The screw terminal type further facilitates secure connections, crucial for maintaining system integrity over time.
With dimensions measuring at a width of just 22.5 mm and height of 85.6 mm, this unit is compact yet robust enough to fit into tight spaces without compromising on performance or durability.
The operating time ranges impressively from as quick as 0.05 seconds up to an extensive duration of 300 hours, allowing for precise timing adjustments tailored to specific operational needs. Electrical durability stands at an impressive benchmark of up to 100,000 operations while mechanical durability reaches an extraordinary count of up to 30 million operations—an assurance of long-term reliability in demanding environments.
Rated with degrees of protection IP20 and IP50 alongside an IP3 degree of pollution rating, this product offers solid defense against dust ingress while being suited for less severe environmental conditions typically found in controlled indoor settings.
Compliance with CAN/CSA IEC/EN UL standards guarantees that this component meets rigorous safety and performance benchmarks recognized globally—a critical factor for those prioritizing adherence to industry regulations.
Weighing only about 0.138 kg, it’s lightweight yet sturdy enough not to compromise on structural integrity during handling or operation.
This technical overview provides a comprehensive understanding necessary for evaluating whether this component aligns with your specific application requirements within industrial or commercial settings.
