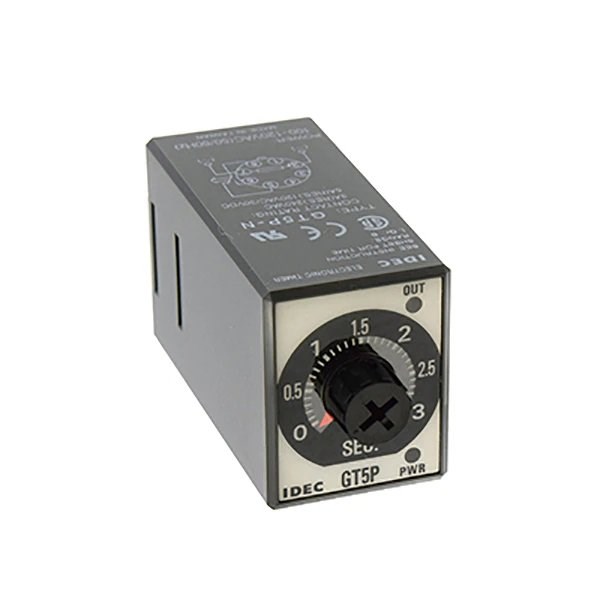

IDEC GT5P-N3MA200 ON Delay Timers 200-240VAC

Product Code: GT5P-N3MA200

  • Plug-in timer for 200-240 VAC systems
  • Compact size: 29x36x81.5 mm
  • Long electrical life: 100,000 ops
  • Withstands temps from -10 to 50°C
  • CE, CSA, UL recognized standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 29W x 36H x 81.5D
Operational Temperature Range (°C) -10 to 50
Power Consumption (VA) 5
Voltage Range AC (V) 200 to 240
Weight (g) 54
Minimum Mechanical Life 20,000,000
Operating Humidity 35 to 85%
Minimum Electrical Life 100000
Resistance to Shock (m/s²) 98
Product Type ON Delay Timers
Brand IDEC
Depth 81.5 mm
Electrical Life 100000 Operations
Height 36 mm
Humidity 45-85%
Mechanical Life 20000000 Operations
Operational Temperature -10 to 50 deg C
Rated Power 5 VA
Rated Voltage 200-240 VAC
Shock Resistance 98 ms
Standards and Approvals CE, CSA, UL Recognized File E55996
Weight 54 g
Width 29 mm

Description

The IDEC TIMER GT5P-N3MA200 is a versatile timing solution for industrial applications. It features SPDT 5A contacts and an 8-pin octal base, accommodating nine time ranges for precise control. The timer boasts a maximum repeat error of ±0.2%, ensuring consistent performance. Adjustments can be made manually or with a screwdriver for convenience, while the power ON and timing out LED indicators provide clear status visualization. Compatible with IDEC's RR2P relay sockets and hold-down clips, it offers easy integration into existing setups.
