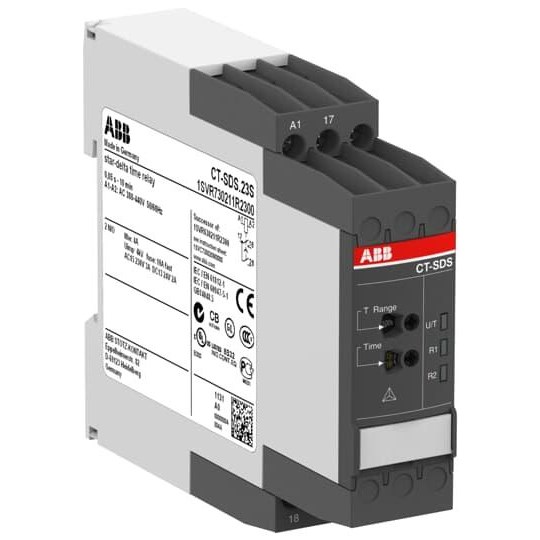

ABB CT-SDS.23S Time Relay 2NO 380-440VAC 4A Screw Terminal

Product Code: CT-SDS.23S

Rated for 380-440 VAC, 4 A, 50/60 Hz
Contact config: 2NO, screw terminals
DIN Rail mountable: 35 x 15 mm or 35 x 7.5 mm
Operating time adjustable from 0.05 s to 10 min
High durability: Elec. -100k ops, Mech. -30M ops

Specifications

Product Type	Time Relay
Brand	ABB
Contact Configuration	2NO
Degree of Pollution	IP3
Degree of Protection	IP20, IP50
Electrical Durability	100000 Operations
Height	85.6 mm
Mechanical Durability	30000000 Operations
Mounting Type	35 x 15 mm DIN Rail, 35 x 7.5 mm DIN Rail
Operating Time	0.05 s-10 min
Operational Temperature	-25 to 60 deg C
Rated Current	4 A
Rated Frequency	50/60 Hz
Rated Voltage	380-440 VAC
Standards and Approvals	CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61812-1, UL 508
Terminal Type	Screw
Weight	0.118 kg
Width	22.5 mm
