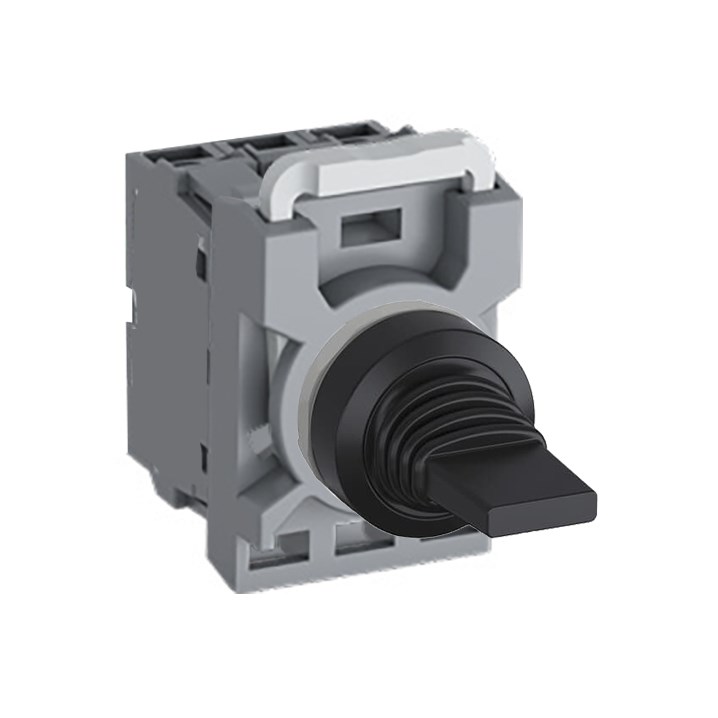

The YW series product is designed for industrial and commercial applications where reliability and compliance with international standards are critical. Operating efficiently at a rated voltage of 100/110 VAC and a frequency of 50/60 Hz, it ensures compatibility across various electrical systems.
Illumination is provided by a built-in LED lamp in a green hue, offering clear visibility in diverse settings. This feature is particularly beneficial in environments where quick status identification is essential. The unit's operational temperature range from -20 to 55 degrees Celsius makes it suitable for use in both cold and warm climates, while its ambient temperature tolerance extends from -45 to 80 degrees Celsius, ensuring resilience under extreme conditions.
Installation is straightforward thanks to the M3.5 screw terminal type, which provides secure connections that withstand rigorous use. The mounting hole diameter of 29.8 mm facilitates easy integration into existing panels or setups.
Engineered to endure challenging environments, this product boasts vibration resistance from 10-500 Hz and can handle shocks up to 100 ms without compromising performance. Its robust construction supports an impressive electrical life of one million operations, highlighting its long-term durability.
Safety and compliance are assured with approvals from CCC, CE, and cULus standards—making it an excellent choice for projects requiring adherence to stringent regulations.
With insulation resistance at 100 MOhm and humidity tolerance between 45-85%, this product maintains optimal performance even in variable environmental conditions.
Overall, the YW series offers dependable operation backed by significant technical specifications suited for demanding industrial needs.
