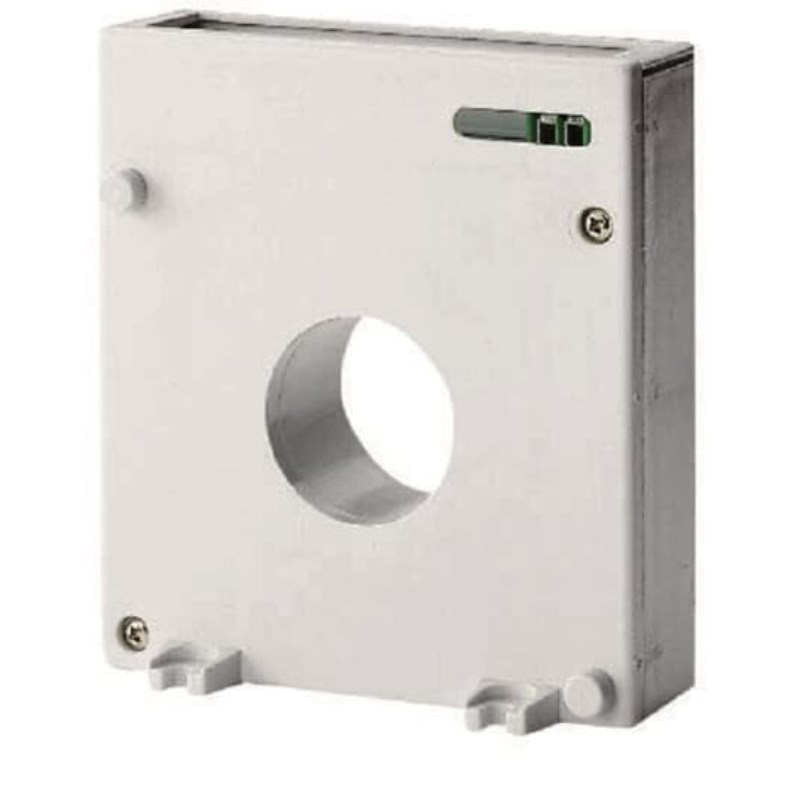

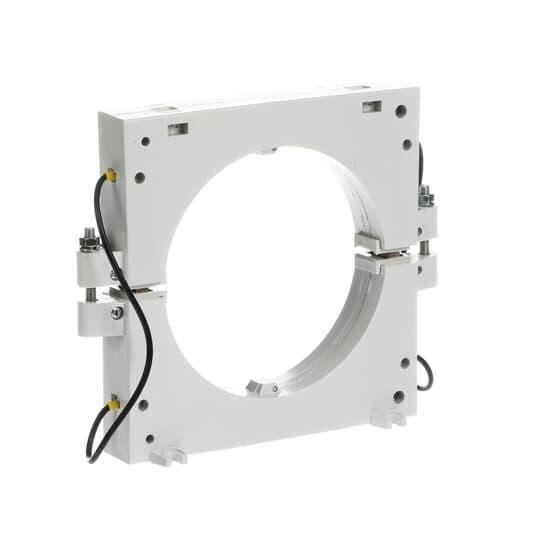

When selecting a toroidal transformer for your industrial or commercial needs, understanding the specifications is crucial. This particular toroidal transformer offers a robust solution with its impressive rated current of 500 A, making it suitable for applications requiring significant power handling capabilities. Its rated insulation voltage stands at 1000 V, providing ample protection against electrical surges and ensuring reliable performance in demanding environments.
The transformer's design includes an IP20 degree of protection. While this indicates it is protected against solid objects over 12 mm in size, it's essential to consider additional housing or enclosures if you're operating in environments where exposure to dust or moisture could be a concern.
In terms of dimensions, this toroidal transformer measures 180 mm in width, 150 mm in height, and has a depth of just 45 mm. These compact dimensions make it an excellent choice for installations where space is at a premium without compromising on functionality. Despite its powerful capabilities, the unit maintains a relatively lightweight profile at only 0.5 kg, simplifying handling and installation processes.
One notable feature is its aperture size of 110 mm which allows for convenient mounting and integration into existing systems or new setups alike. The aperture ensures ease when routing cables through the core without hindrance—a practical consideration during installation phases.
Choosing the right transformer involves balancing technical requirements with environmental conditions and spatial constraints. This model's combination of high current capacity and insulation voltage makes it versatile across various applications while maintaining compliance with safety standards due to its IP20 rating.
Overall, whether you're upgrading existing equipment or setting up new infrastructure within industrial settings such as manufacturing plants or commercial facilities like data centers, this toroidal transformer presents itself as a dependable component designed to meet rigorous demands efficiently.
