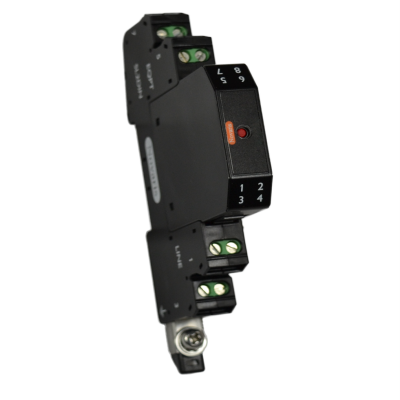

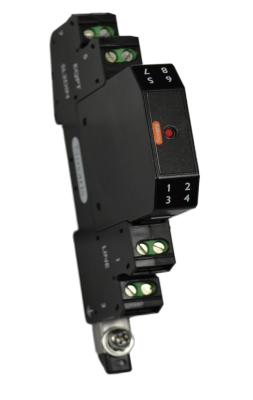

Novaris TCP-2.5-40-350 Track Circuit Protector With Base 20kA 350VDC TS35 12mm W 110mm D 71mm H Polycarbonate IP20

Product Code: TCP-2.5-40-350

  • Surge protection for 350 VDC systems
  • Handles up to 20 kA current
  • Compact size: 12 mm width
  • Quick response time of 100 ns
  • Easy TS35 DIN rail mounting
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Operational Temperature Range (°C) -40 to 70
Response Time (ns) 100
Enclosure Material Polycarbonate
No. of Lines 1 Pair
Maximum Load Current - I? (A) 2.5
Maximum Continuous Voltage DC (V) 350
Maximum Continuous Voltage AC (V) 230
Maximum Discharge Current (8/20µs) (kA) 20
Dimensions (mm) 12W x 71H x 110D
Product Type Track Circuit Protector With Base
Brand NOVARIS
Connection Type Series
Degree of Protection IP20
Depth 110 mm
Height 71 mm
Humidity 5-95%
Material Polycarbonate
Modes of Protection Transverse and Common Modes
Mounting Type TS35 DIN Rail
Number of Lines 1 pair
Operational Temperature -40 to 70 deg C
Rated Current 20 kA
Rated Voltage 350 VDC
Response Time 100 ns
Width 12 mm
