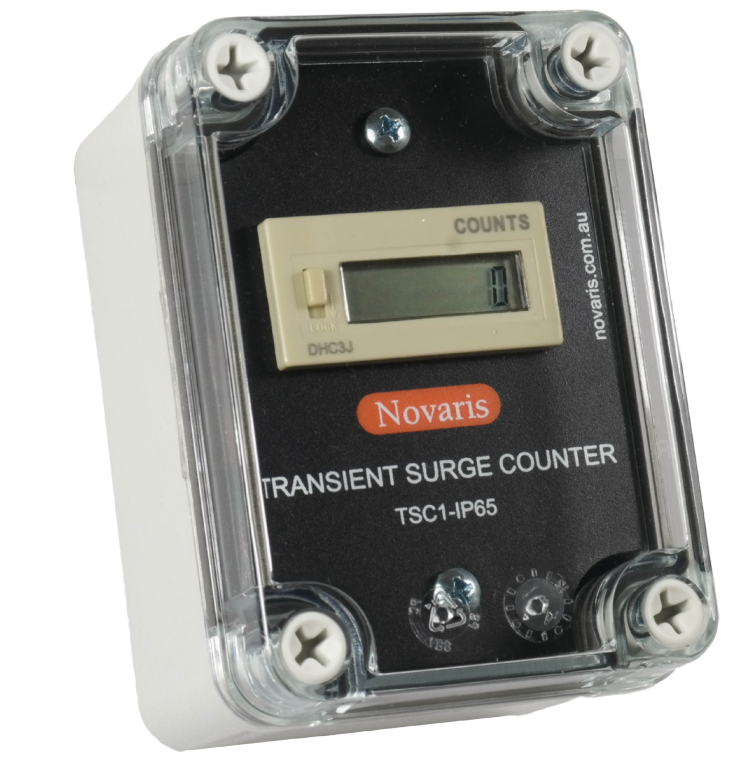

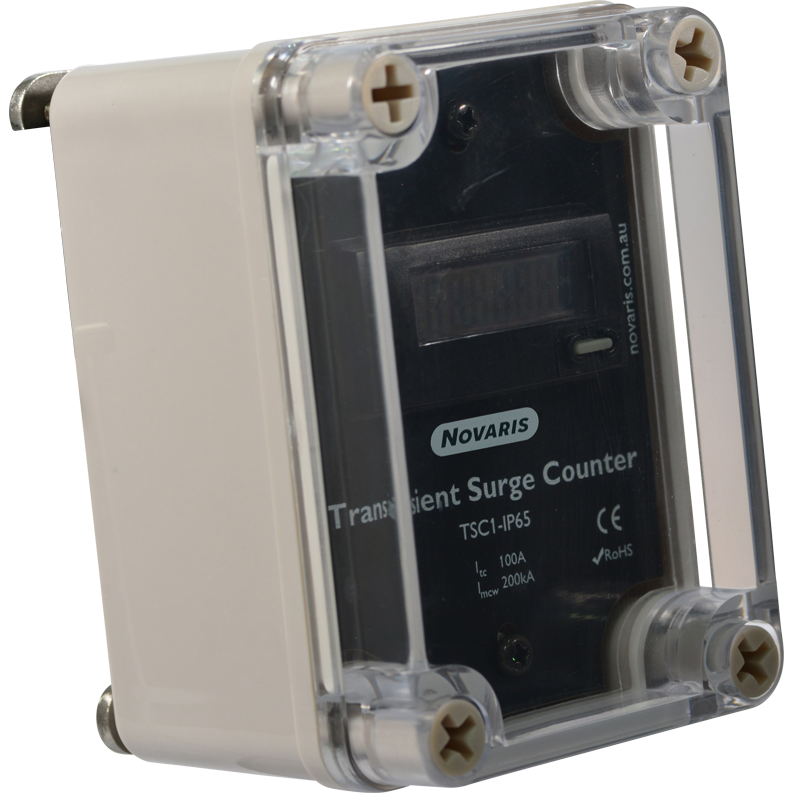

Novaris TSC1-IP65 Transient Surge Counter 100A 200kA Clamp Mount IP67

Product Code: TSC1-IP65

  • Handles up to 100 A, 200 kA
  • Resettable LCD display for easy reading
  • IP67 protection for harsh environments
  • Clamp mounting for quick installation
  • Operates in -40 to 70°C range
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Operational Temperature Range (°C) -40 to 70
Maximum Discharge Current (8/20µs) (kA) 200
Sensitivity 85A
Product Type Transient Surge Counter
Brand NOVARIS
Degree of Protection IP67
Display Type Resettable, LCD
Humidity 5-95%
Mounting Type Clamp
Operational Temperature -40 to 70 deg C
Rated Current 100 A, 200 kA
Standards and Approvals IEC 62561-6:2011
Thread Size BATTER
Weight 400 g

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
