ABB RC120-05 CURRENT SENSOR RC120-05

Product Code: RC120-05

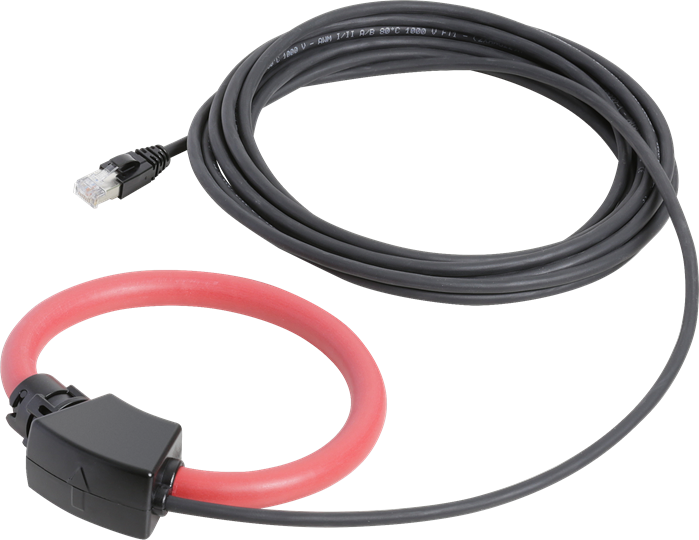

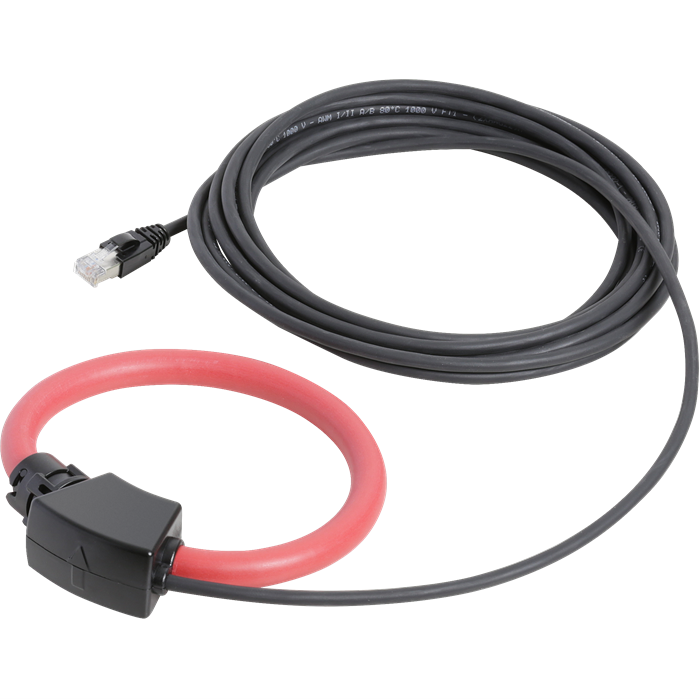

Open loop current sensor RC120-05 is used together with the CSU-2LV current sensing unit and connected with RJ45 connector. The current sensor uses rogowski coil technology to measure current. The current sensor is specific for CSU-2LV with measurement output of 0,361 V/kA. Coil diameter for bus bar or cable is 120 mm, transducer diameter is 12,4 mm and the cable length of 5 m. The open loop current sensor is assembled with a bayonet holder.

Technical Specifications

Brand ABB
Cable Length (m) 5
Calibrated Yes
Connection Type RJ45
Degree of Protection IP67
Dimensions (mm) 150W x 40H x 150D
Function Shielded Cable
No. of Inputs 1
Operational Temperature Range (°C) -30 to +80
Weight (kg) 0.18
