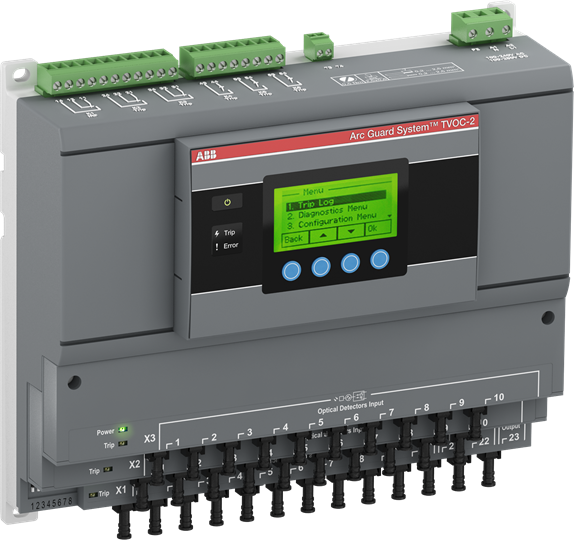

ABB TVOC-2-48 ARC MONITOR TVOC-2-48

Product Code: TVOC-2-48

The TVOC-2 Arc Guard System is an arc protection relay that mitigates arc faults and helps to protect people and equipment. The Arc monitor is the main unit of the Arc Guard System which detects the light of an arc and through the fast IGBT contacts sends an electrical signal within 1 ms to a nearby breaker that breaks the power and extinguishes the arc. The Arc monitor has 10 detector inputs and can trip up to three breakers with zone selectivity if needed. Up to 2 extension units can extend the number of light detectors to 30 and the unit includes an HMI that can be placed on the outside of the door. Detectors are sold in a wide range of lengths to fit a full switchgear design. Supply voltage 24... 48 V DC. Accessories include current sensing unit, optical cables, cable straps etc.

Technical Specifications

Brand ABB
Actuating Voltage Type DC
Auxiliary Contacts 3NO, 3CO(SPDT)
Connection Type Screw Connection
Degree of Protection IP54
Dimensions (mm) 210W x 230H x 80D
Model Modular
Mounting Type Surface Mount
No. of Arc Sensors 30
No. of Change-over Contacts 3
No. of Inputs 12
No. of Normally-open Contacts 3
No. of Trip Outputs 3
Operational Temperature Range (°C) -25 to +55
Rated Control Supply Voltage DC (V) 24
Rated Frequency (Hz) 50/60
Rated Operational Voltage DC (V) 24-48
Terminal Type Screw Terminals
Weight (kg) 1.2
