ARC Monitor

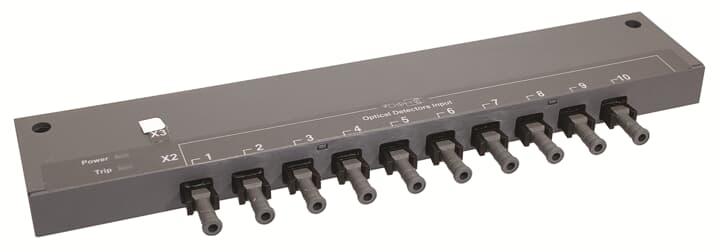

ABB TVOC-2-E1 EXTENSION TVOC-2-E1

Product Code: TVOC-2-E1

The extension unit TVOC-2-E1 can be assembled on the TVOC-2 main unit to increase the number of detector inputs. There are 10 detector inputs per extension unit E1 and up to 2 extension units can be added to the main unit, creating 30 detector inputs in total.

Technical Specifications

Brand ABB
Dimensions (mm) 230W x 50H x 25D
Mounting Type Front Mount
No. of Inputs 10
Operational Temperature Range (°C) -25 to +55
Power Loss (W) 1
Suitable For TVOC-2
Weight (kg) 0.114

Documents
