ARC Monitor

ABB TVOC-2-H1 HMI TVOC-2-H1

Product Code: TVOC-2-H1

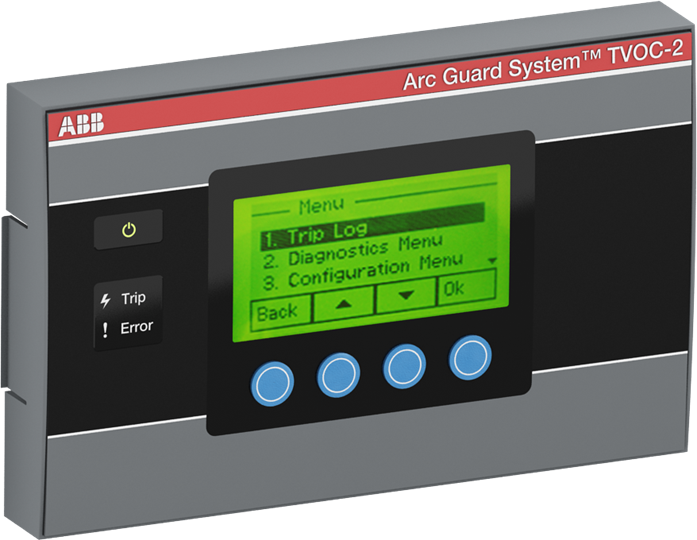

The TVOC-2-H1 is an HMI to be added to the TVOC-2 Arc Guard System Main unit if more than one HMI is needed. The added HMI can be added to the panel door for easier overview. The HMI is connected to the main unit by a 3 m cable with RJ45 connector that comes with the HMI unit. Accessories that comes with the unit are mounting nut, gasket and blank front label.

Technical Specifications

Brand ABB
Connection Type Screw Connection
Dimensions (mm) 130W x 82H x 27D
Mounting Type Front Mount
Operational Temperature Range (°C) -25 to +55
Power Loss (W) 1
Suitable For TVOC-2
Terminal Type Screw Terminals
Weight (kg) 0.115
