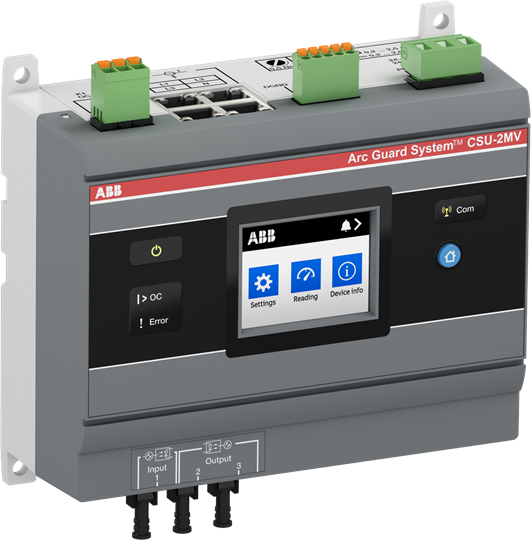

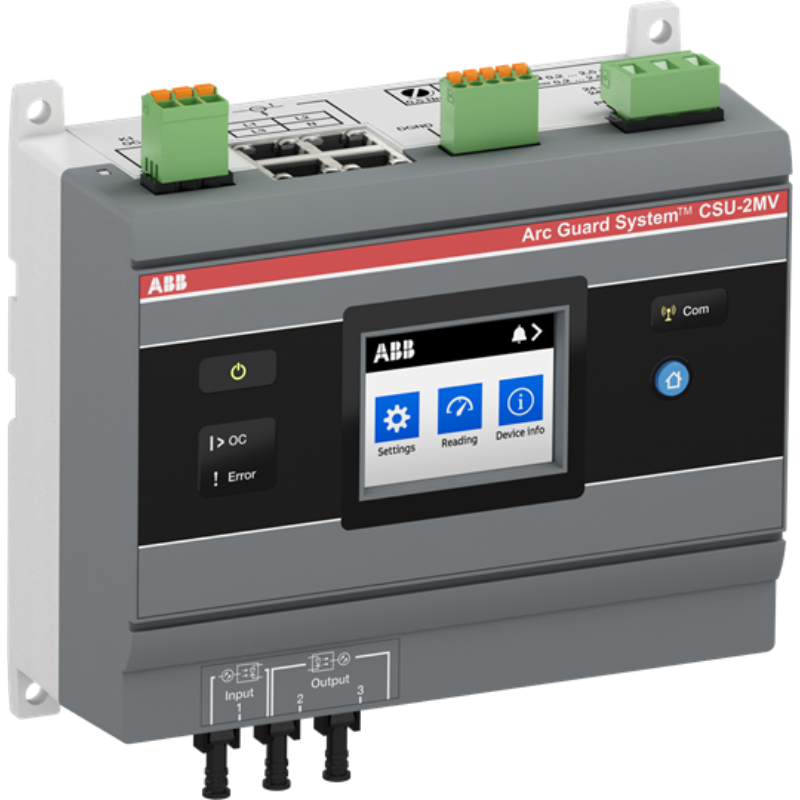

ABB CSU-2MV MEDIUM VOLTAGE CURRENT SENSING UNIT

Product Code: CSU-2MV

Technical Specifications

Brand ABB
Accuracy ±3%
Auxiliary Contacts 1 CO (SPDT)
Communication Interface Modbus RTU
Contact Material Gold-Plated
Current Input Sensitivity (V/kA) 1.852
Current Sensor Inputs Phases (L1-L3) - 3, Neutral -1
Current Warning Range (A) 100-12000
Degree of Protection IP20
Dimensions (mm) 155.5W X 141.1H X 63.8D
Inputs Current signal input optical (daisy chain) -1
Mounting Type Wall mounted or DIN
Nominal Current (A) 250-4000
Operational Temperature Range (°C) -25 to +70
Outputs Current signal output optical - 2, Signal relay (for over current signal) -1
Over Current Setting (A) 100-12000
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 250
Rated Operational Voltage AC (V) 24-240
Rated Operational Voltage DC (V) 24-250
Suitable For TVOC-2
Terminal Type Screw Terminals
Weight (kg) 0.42
