Specifications

Dimensions (mm)	25W x 25H x 57D
Sparkover Voltage DC (V)	90
Maximum Working Frequency (GHz)	3
Power Rating (W)	0-25
Weight (g)	100
Maximum Discharge Current (8/20µs) (kA)	20

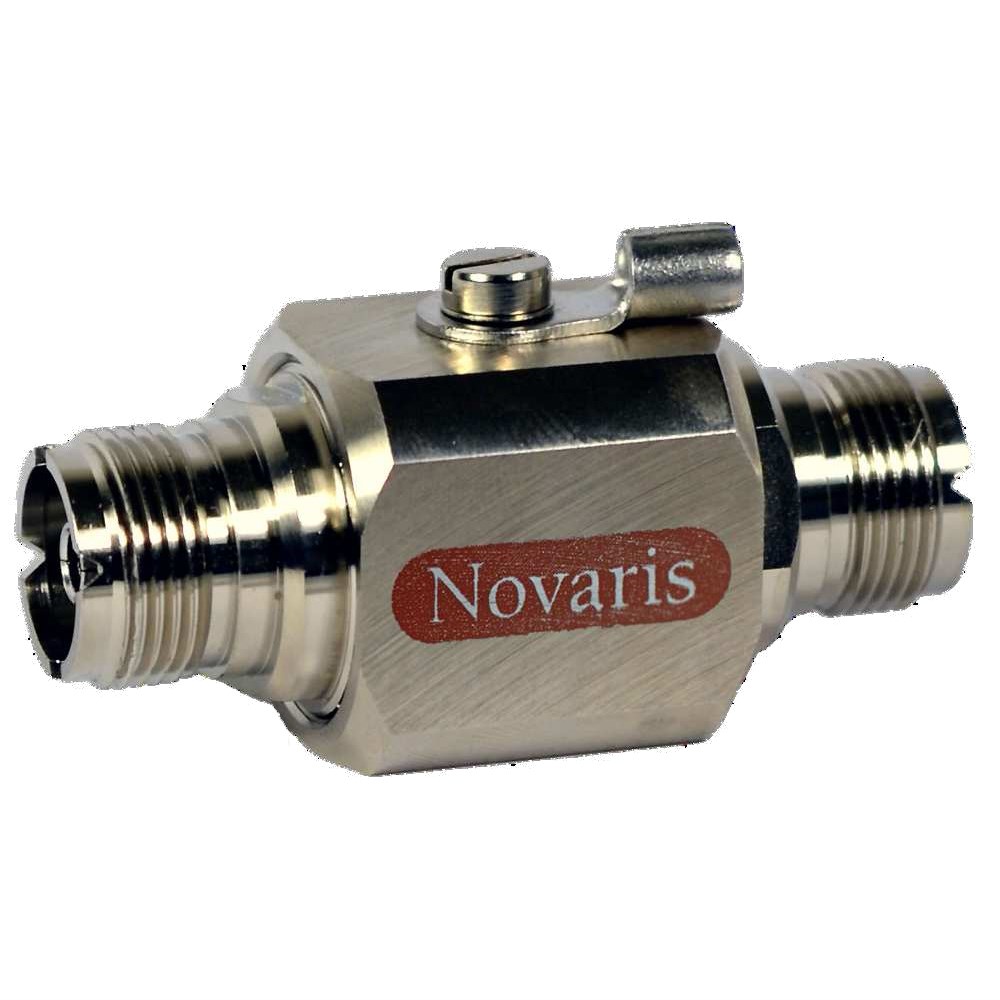

Product Type	UHF RF Protector
Brand	NOVARIS
Capacitance	<1 pF
Connection Type	U-Type
Connector Orientation	Female
Degree of Protection	IP55
Depth	57 mm
Height	25 mm
Humidity	5-95%
Material	Brass, Nickel Plated
Modes of Protection	Signal-Earth
Operational Temperature	-40 to 85 deg C
Rated Current	20 kA, 50 kA
Rated Frequency	3 GHz
Rated Power	0-40 W
Rated Voltage	90 VDC
Resistance	50 Ohm
Standards and Approvals	IEC61643-21, UL497B, ITU-T K.44, AS/NZS 1768, IEE C62.41
Voltage Protection Level	<0.65 kV
Weight	150 g
Width	25 mm
