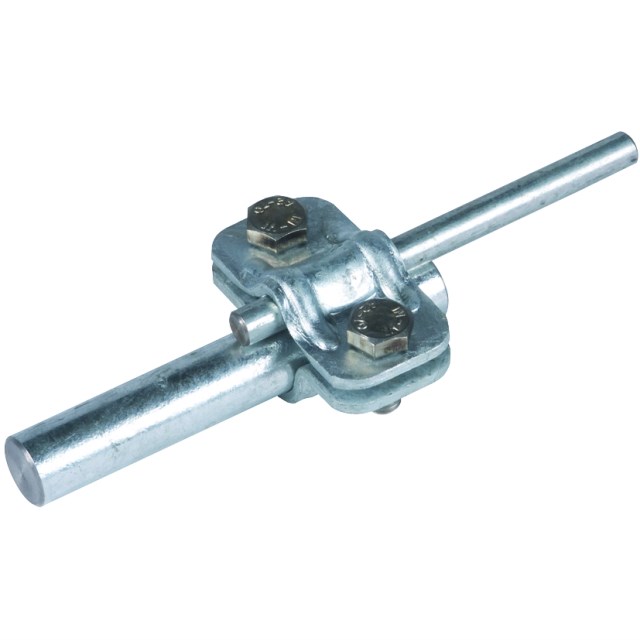

DEHN 459010 UNI Disconnecting Clamp 8-10mm 16mm M8 x 20mm Screw Steel

Product Code: 459010

  • M8 x 20 mm screw connection
  • Steel construction, hot dip galvanized
  • Clamping range: 8-10 mm, 16 mm
  • Lightning current capability: 100 kA
  • Complies with EN 62561-1 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 58W x 30D
Thickness (mm) 3
Suitable For For earth entry rods
Weight (kg) 0.11
Class (Lightning Current Carrying Capability) (kA) 100
Reference No. 459010
Clamping Range (mm) 8-10/16
Weight (g) 110
Surface Protection Hot-dip Galvanized
Gross Weight (g) 112
Conductor Diameter (mm) 8 - 10
Clamping Range Rd/Rd (mm) 8 - 10 / 16
Distance Between Screws (mm) 40
Product Type UNI Disconnecting Clamp
Brand DEHN
Clamping Range 8-10 mm, 16 mm
Connection Type M8 x 20 mm Screw
Connector Type UNI Disconnecting clamps
Depth 30 mm
Finish Hot Dip Galvanized
Lightning Current Carrying Capability 100 kA
Material Steel
Screw Size M8
Standards and Approvals EN 62561-1
Thickness 3 mm
Weight 110 g
Width 58 mm
