Specifications

Dimensions (mm)	50W x 30D
Reference No.	459000
Thickness (mm)	3
Suitable For	For earth entry rods
Weight (kg)	0.127
Class (Lightning Current Carrying Capability) (kA)	100
Clamping Range (mm)	7-10/16
Weight (g)	127
Surface Protection	Hot-dip Galvanized
Gross Weight (g)	129
Conductor Diameter (mm)	7 - 10
Clamping Range Rd/Rd (mm)	7 - 10 / 16
Distance Between Screws (mm)	30

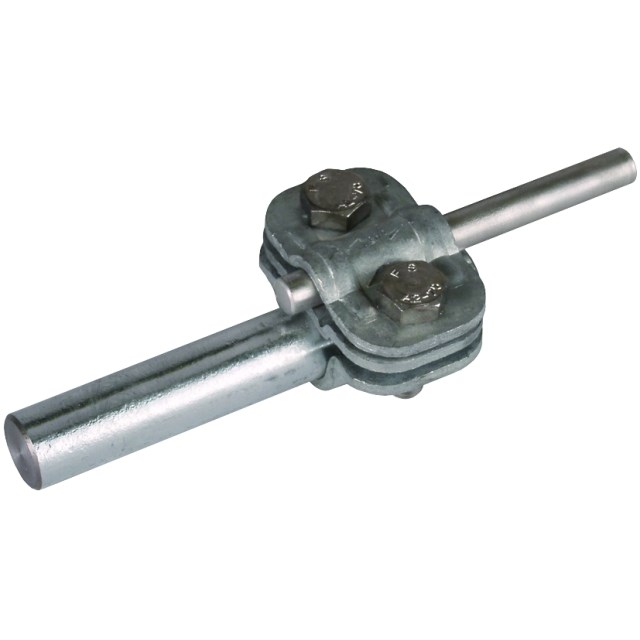

Product Type	UNI Disconnecting Clamp
Brand	DEHN
Clamping Range	7-10 mm, 16 mm
Connection Type	M8 x 25 mm Screw
Connector Type	UNI Disconnecting clamps
Depth	30 mm
Finish	Hot Dip Galvanized
Lightning Current Carrying Capability	100 kA
Material	Steel
Screw Size	M8
Standards and Approvals	EN 62561-1
Thickness	3 mm
Weight	127 g
Width	50 mm
