Specifications

Dimensions (mm)	58W x 30D
Reference No.	459019
Thickness (mm)	2.5
Suitable For	For earth entry rods
Weight (kg)	0.87
Class (Lightning Current Carrying Capability) (kA)	100/50
Clamping Range (mm)	8-10/16
Weight (g)	87
Surface Protection	Untreated
Gross Weight (g)	89.3
Conductor Diameter (mm)	8 - 10
Clamping Range Rd/Rd (mm)	8 - 10 / 16
Distance Between Screws (mm)	40

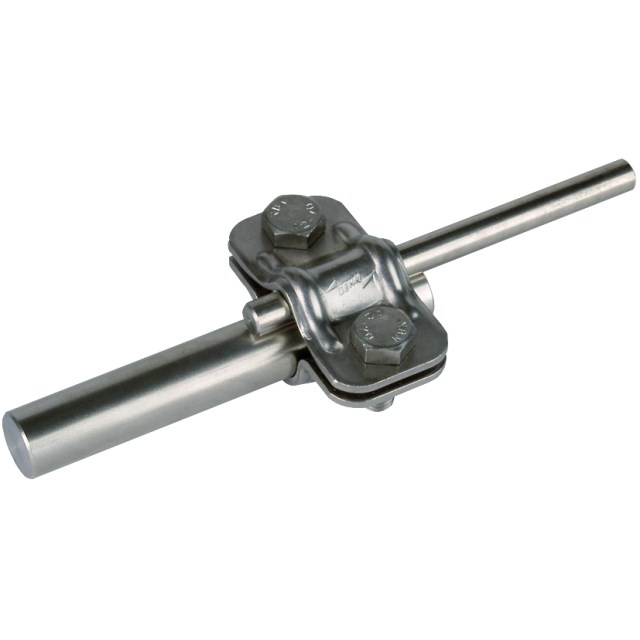

Product Type	UNI Disconnecting Clamp
Brand	DEHN
Clamping Range	8-10 mm, 16 mm
Connection Type	M8 x 20 mm Screw
Connector Type	UNI Disconnecting clamps
Depth	30 mm
Finish	Untreated
Lightning Current Carrying Capability	50 kA, 100 kA
Material	Stainless Steel
Screw Size	M8
Standards and Approvals	EN 62561-1
Thickness	2.5 mm
Weight	87 g
Width	58 mm
