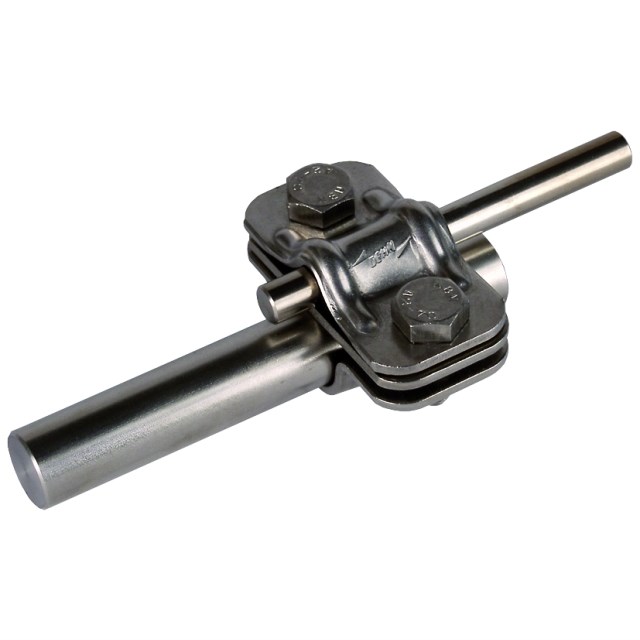

DEHN 459119 UNI Disconnecting Clamp 8-10mm 16mm M8 x 20mm Screw Stainless Steel

Product Code: 459119

  • M8 x 20 mm screw connection
  • Stainless steel construction
  • Clamping range: 8-10 mm, 16 mm
  • Lightning current capacity: 100 kA
  • Complies with EN 62561-1 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 58W x 30D
Reference No. 459119
Thickness (mm) 2.5
Suitable For For connecting down conductors with earth entries
Weight (kg) 0.124
Class (Lightning Current Carrying Capability) (kA) 50
Weight (g) 124
Surface Protection Untreated
Gross Weight (g) 126
Conductor Diameter (mm) 8 - 10
Clamping Range Rd/Rd (mm) 8 - 10 / 16
Distance Between Screws (mm) 40
Clamping Range (mm) 8-10/16
Product Type UNI Disconnecting Clamp
Brand DEHN
Clamping Range 8-10 mm, 16 mm
Connection Type M8 x 20 mm Screw
Connector Type UNI Disconnecting clamps
Depth 30 mm
Finish Untreated
Lightning Current Carrying Capability 100 kA
Material Stainless Steel
Screw Size M8
Standards and Approvals EN 62561-1
Thickness 2.5 mm
Weight 124 g
Width 58 mm
