Specifications

Ambient Temperature Range (°C)	–25 - +55
Dimensions (mm)	35(W) x135(H) x69(D)
Reference No.	773034
Suitable For	Earthing
Weight (kg)	0.634
Type	Short-Circuiting Devices
Wire Cross Section (mm²)	22 - 120
Clamping Range (mm)	20
Maximum Output Short-circuit Current (A)	33506 (0.5s), 23700 (1s)

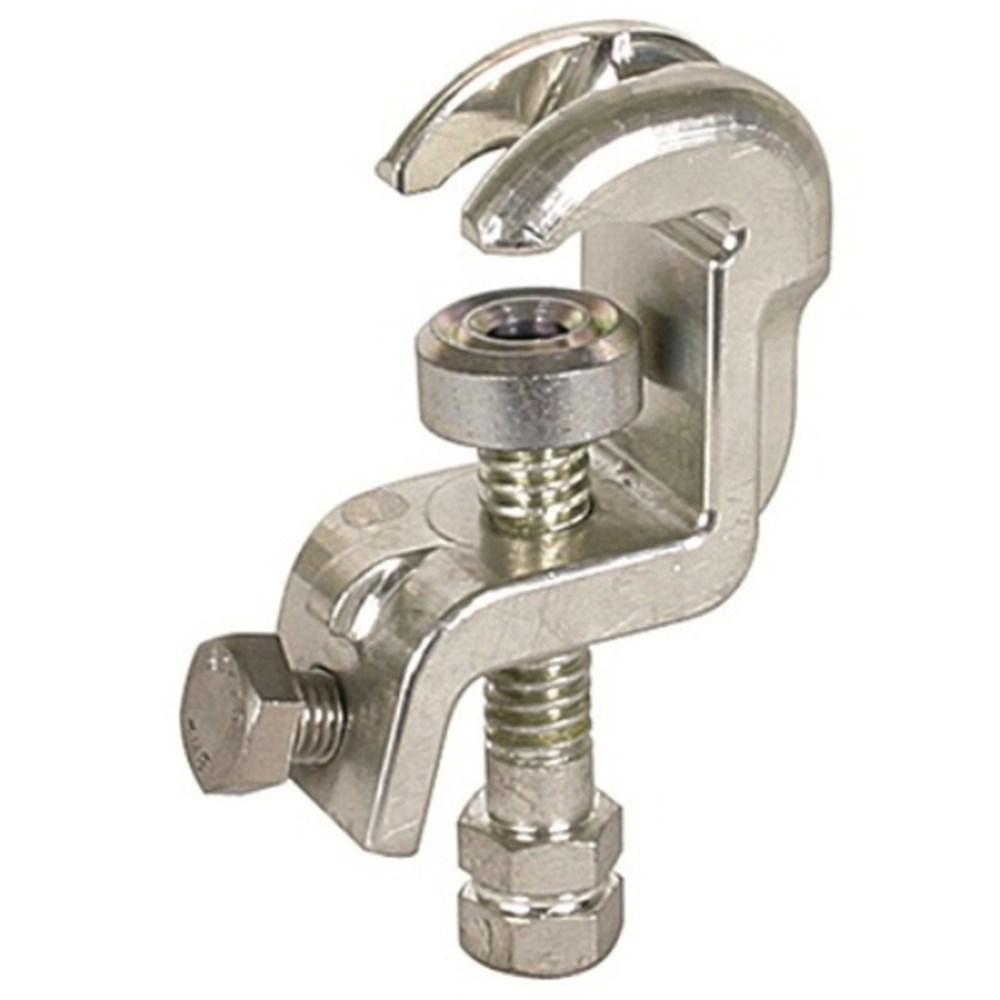

Product Type	Universal Clamp With Hexa Shaft
Brand	DEHN
Clamping Range	20 mm
Connection Type	20/25 mm Fixed Ball Point
Cross Section	16-120 sq-mm
Depth	69 mm
Height	135 mm
Material	Copper Alloy
Operational Temperature	-25 to 55 deg C
Rated Current	33.5 A, 23.7 A
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100)
Weight	634 g
Width	35 mm
