Specifications

Ambient Temperature Range (°C)	–25 - +55
Dimensions (mm)	40(W) x136(H) x74(D)
Suitable For	Earthing
Weight (kg)	0.801
Reference No.	773130
Type	Short-Circuiting Devices
Wire Cross Section (mm²)	25 - 120
Clamping Range (mm)	30
Maximum Output Short-circuit Current (A)	33509 (0.5s), 23700 (1s)

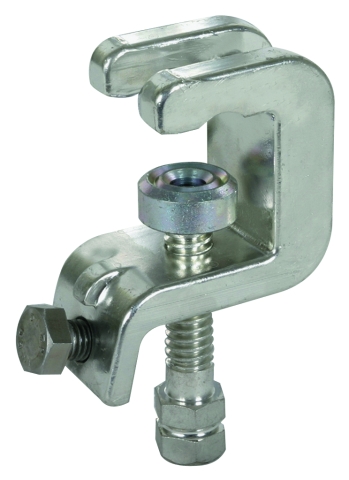

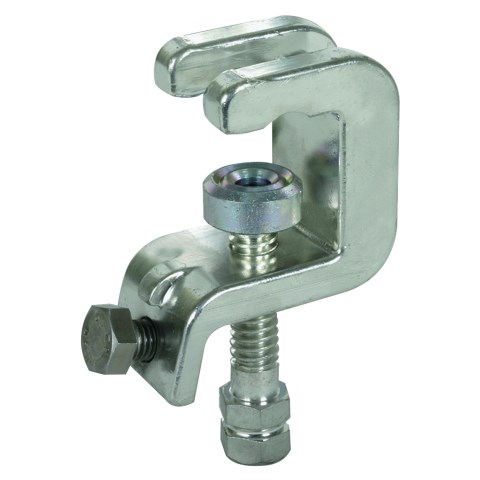

Product Type	Universal Clamp With Hexa Shaft
Brand	DEHN
Clamping Range	30 mm
Connection Type	25/30 mm Fixed Ball Point
Cross Section	16-120 sq-mm
Depth	74 mm
Height	136 mm
Material	Copper Alloy
Operational Temperature	-25 to 55 deg C
Rated Current	33.5 A, 23.7 A
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100)
Weight	801 g
Width	40 mm
