W66 Industrial IP66 Switchgear

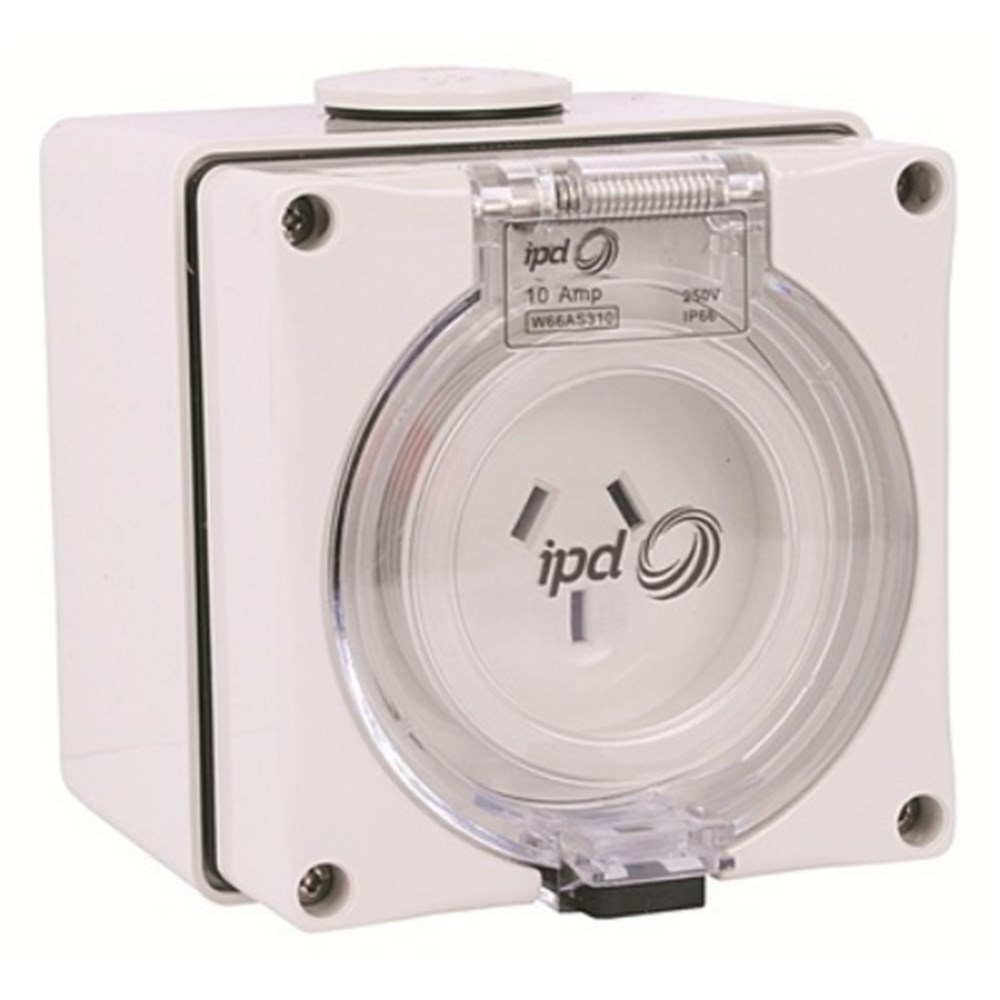

IPD UNSWITCHED SOCKET 1 PHASE 3 FLAT PINS 10A 250V LESS BASE, IP66 W66US310LB

Product Code: W66US310LB

Low voltage, single phase unswitched socket with 3 flat pins and without base, IP66. Current rating at 10A, voltage rating at 250V. Max cable area 6mm² and stainless steel fixings, silicone cover gasket. W66B1 base is required.

Technical Specifications

Brand IPD
Back Box Included No
Cover Style Light Grey
Degree of Protection IP66
Dimensions (mm) 101W x 101H x 91D
Gland Entries 1 x M32, 2 x M25
Material Polycarbonate
Maximum Cable Cross Section (mm²) 6
No. of Phases 1
No. of Pins 3
Pin Type Flat
Rated Current (A) 10
Rated Voltage AC/DC (V) 250
Standards and Approvals AS3112
